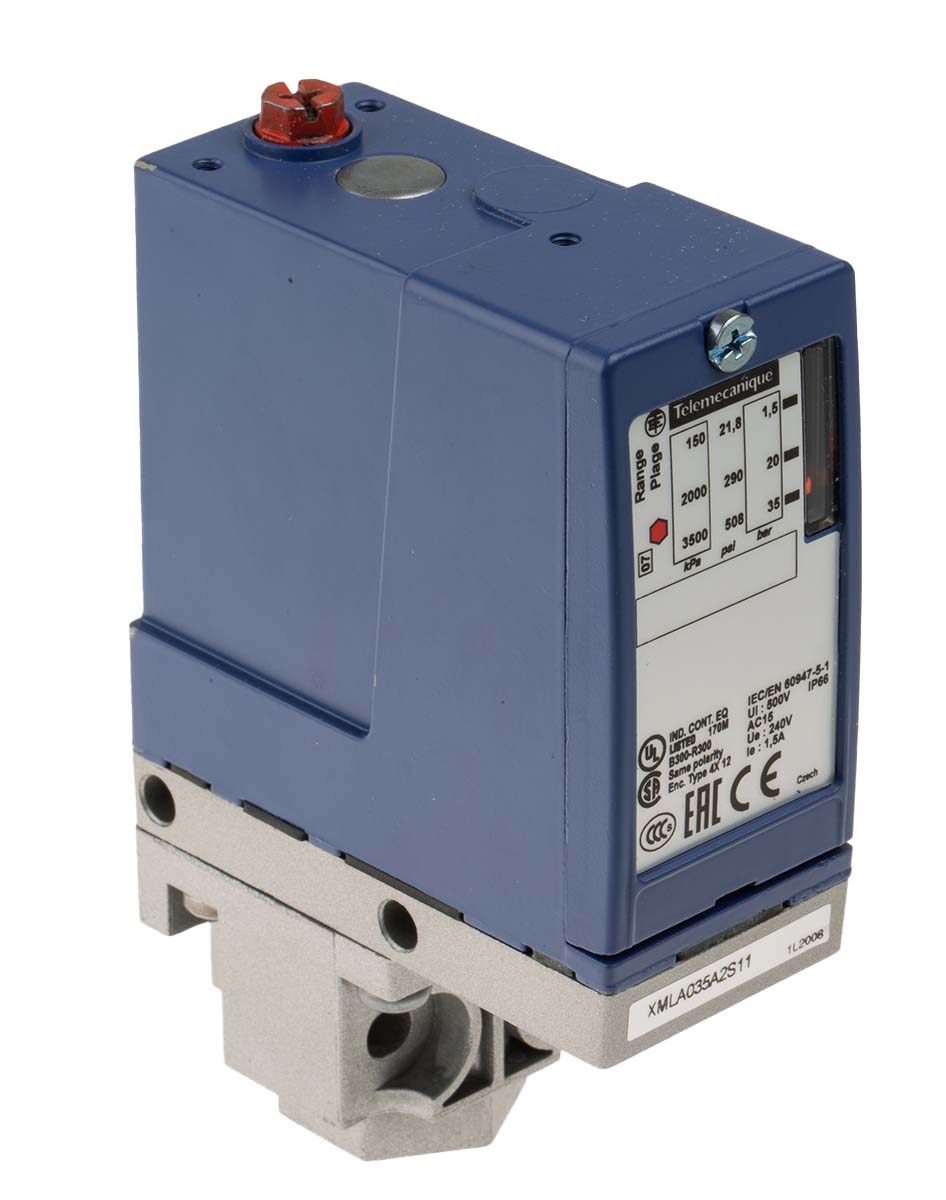

Telemecanique Sensors Pressure Sensor, 1.5bar Min, 35bar Max, Relay Output, Differential Reading

xmla035a2s11 Telemecanique Sensors Pressure Sensor, 1.5bar Min, 35bar Max, Relay Output, Differential Reading
XMLA035A2S11
XMLA035A2S11
HT16056
HT16056
Pressure Sensors
Pressure Sensors
xmla035a2s11 Telemecanique Sensors Pressure Sensor, 1.5bar Min, 35bar Max, Relay Output, Differential ReadingTelemecanique Sensors
brand logo

HT Part No. HT16056

Mfr. Part No. XMLA035A2S11

Manufacturer: Telemecanique Sensors

Technical Documents: Equivalent model references of XML pressure and vacuum switches for previous range XM2-JM, XMJ and XMG pressure and vacuum switches Data Sheet-e33006d7(datasheets) Electromechanical pressure and vacuum switches Nautilus For control circuits, type XML Dimensions Data Sheet-a096bcaa(datasheets) XMLA035A2S11 Datasheet-ec1c9fa8(datasheets) OsiSense Sensing Guide-2088f550(datasheets) Product Environmental Profile-7354d96e(datasheets)

6 - In Stock pcs
Price:
£ 128.01
Units Per Unit Price
1 + £ 128.01
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Pressure Reading Type Differential
Minimum Pressure Reading 1.5bar
Maximum Pressure Reading 35bar
Accuracy 2 %
Output Type Relay
Media Measured Air, Fresh Water, Hydraulic Fluid, Sea Water
Process Connection G1/4
Electrical Connection PG13.5 Cable Gland
Maximum Current 3 A ac, 100 mA dc
Supply Voltage 120 → 240 V ac, 250 V dc
Housing Material Zinc Alloy
Maximum Operating Temperature +70°C
Minimum Operating Temperature -25°C
IP Rating IP66

More Information

OsiSense XMLA Pressure Switches Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold. Fixed differential
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4" NPT
Conduit connection: 1/2" NPT
