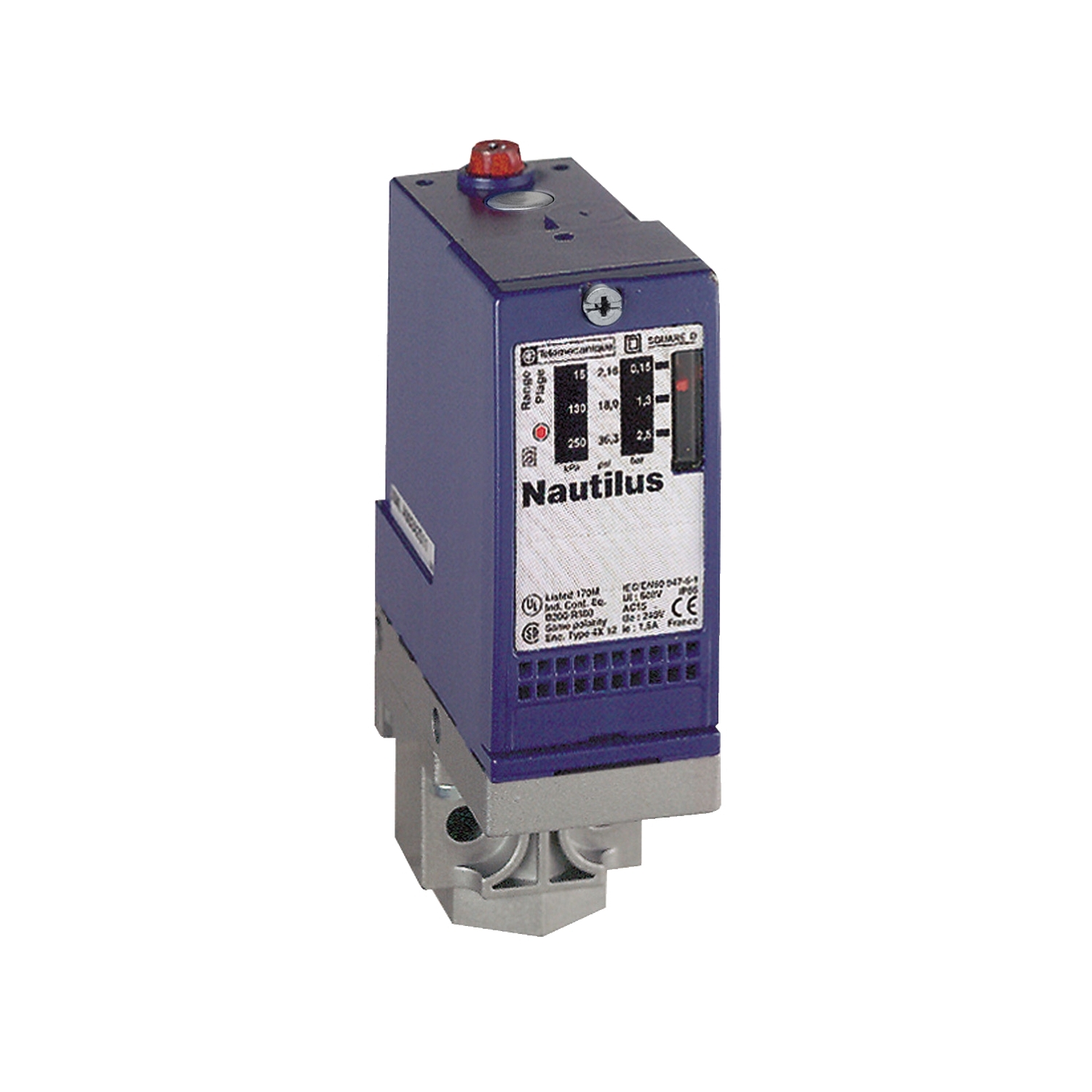

Telemecanique Sensors Pressure Sensor, 20bar Min, 300bar Max, Relay Output, Differential Reading

xmla300d2s11 Telemecanique Sensors Pressure Sensor, 20bar Min, 300bar Max, Relay Output, Differential Reading
XMLA300D2S11
XMLA300D2S11
HT22757
HT22757
Pressure Sensors
Pressure Sensors
xmla300d2s11 Telemecanique Sensors Pressure Sensor, 20bar Min, 300bar Max, Relay Output, Differential ReadingTelemecanique Sensors
brand logo

HT Part No. HT22757

Mfr. Part No. XMLA300D2S11

Manufacturer: Telemecanique Sensors

Technical Documents: Pressure Switch xmla300d2s11-0cc8ac7a(datasheets) Brochure-ebbefa57(datasheets) OsiSense Sensing Guide-7a5b15c5(datasheets) Product Environmental Profile-7354d96e(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 144.25
Units Per Unit Price
1 + £ 144.25
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Pressure Reading Type Differential
Minimum Pressure Reading 20bar
Maximum Pressure Reading 300bar
Accuracy 2 %
Output Type Relay
Media Measured Hydraulic Fluid
Process Connection G1/4
Electrical Connection PG13.5 Cable Gland
Maximum Current 3 A ac, 100 mA dc
Supply Voltage 120 → 240 V ac, 250 V dc
Housing Material Zinc Alloy
IP Rating IP66
Minimum Operating Temperature -25°C
Maximum Operating Temperature +70°C
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=12890&DisplayLogo=False

More Information

OsiSense XMLA Pressure Switches Schneider Electric XMLA pressure switches for control circuits are used to control the pressure of hydraulic oils, fresh water, sea water, air, steam, corrosive fluids, or viscous products. The XMLA pressure and vacuum switches have a fixed differential and are for detection of a single threshold. Fixed differential
External pressure setting window available
1 NO & 1 NC snap acting contacts
Temperature range: –25 to +70 °C
Enclosure rating: IP65 with plug-in connector, IP66 with terminal connections
Operating rate: up to 120 operations / min. for diaphragm and 60 / min. for piston
Media connection: 1/4" NPT
Conduit connection: 1/2" NPT
