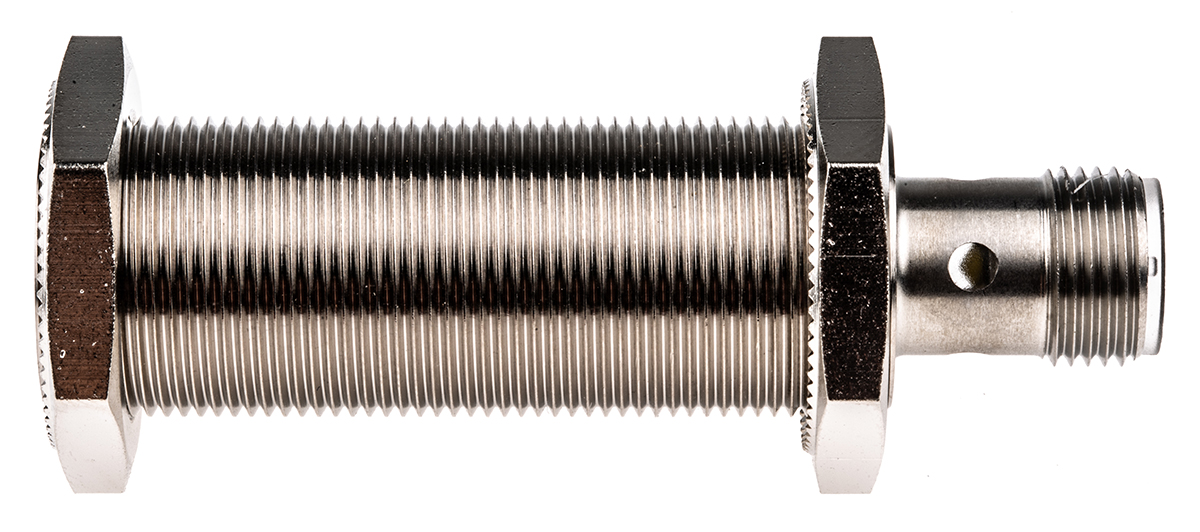

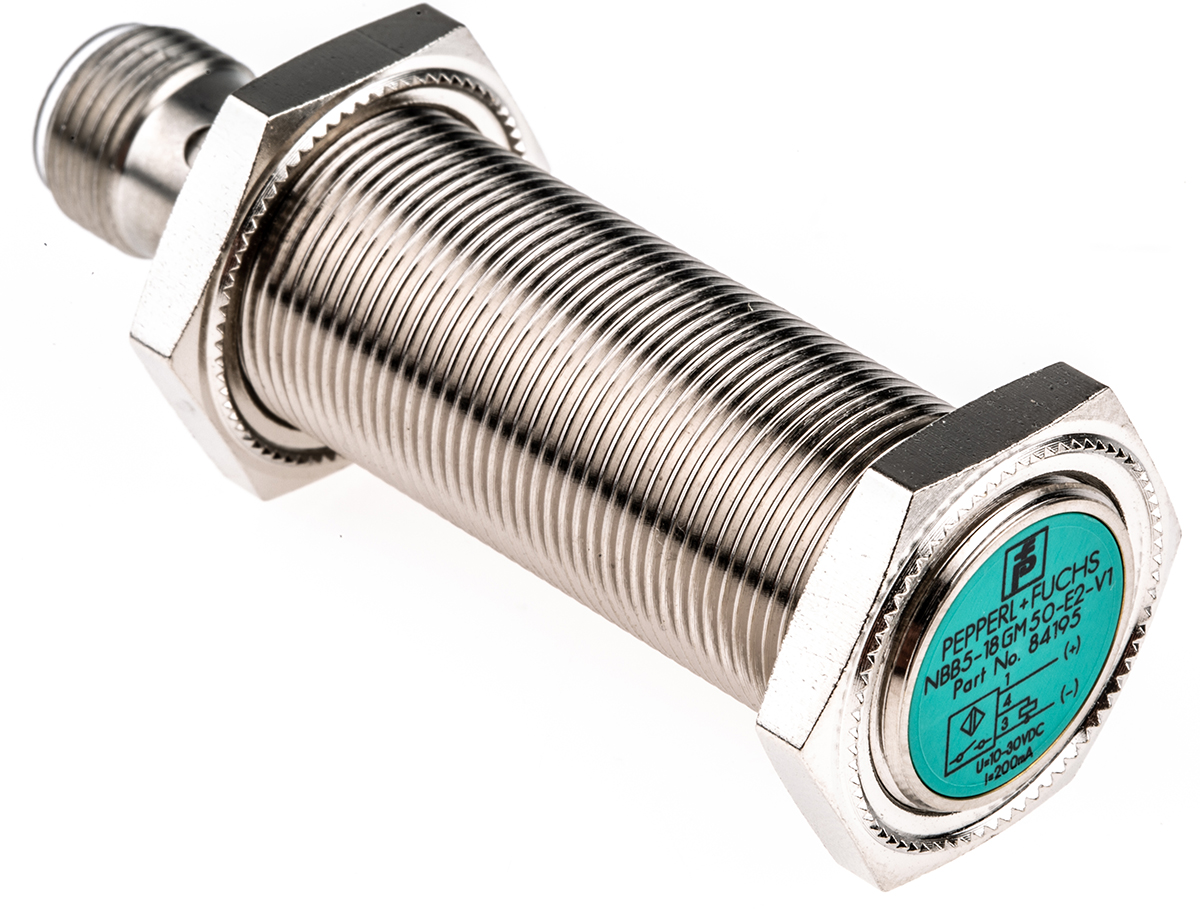

Pepperl + Fuchs Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, PNP NO, 5 → 36 V dc

nbb5-18gm50-e2-v1 Pepperl + Fuchs Inductive Threaded Barrel Proximity Sensor, M18, 5 mm Detection, PNP NO, 5 → 36 V dc
NBB5-18GM50-E2-V1
NBB5-18GM50-E2-V1
HT29501
HT29501
Proximity Sensors
brand logo

HT Part No. HT29501

Mfr. Part No. NBB5-18GM50-E2-V1

Manufacturer: Pepperl + Fuchs

Technical Documents: Approval certificate-6b27f52a(datasheets) NBB5-18GM50-E2-V1 - Datasheet-f5681392(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Thread Size M18
Sensor Technology Inductive
Detection Range 5 mm
Body Style Threaded Barrel
Digital Switching Output Type PNP
Output Function NO
Connection Type M12
Supply Voltage 5 → 36 V dc
IP Rating IP68
Length 65mm
Mounting Type Flush
Housing Material Brass, White Bronze Coated
Maximum DC Voltage 36V
Minimum Operating Temperature -40°C
Depth 18mm
Switching Frequency 1.95 kHz
Reverse Polarity Protection Yes
Shielding Shielded
Switching Current 200 mA
Maximum Switching Frequency 1.95kHz
Maximum Operating Temperature +85°C
Short Circuit Overload Protection Yes
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=2492366&DisplayLogo=False

More Information

Standard Sensing Range A range of Pepperl + Fuchs inductive sensors available in different sensing and temperature ranges to suit a variety of industrial applications. Features and benefits Nickel plated brass housing with PBT face LED indication Embeddable, flush or non-flush installation available IP67 Supply voltage 10 to 30Vdc Short circuit and reverse polarity protection Pre-wired types have 2m PVC cable Plug-in types have M12 type connector
