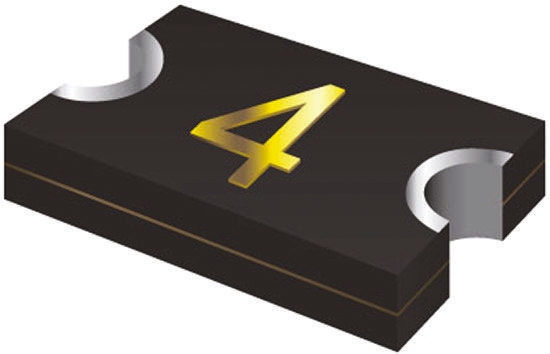

Bourns 0.1A Resettable Fuse, 15V

mf-psmf010x-2 Bourns 0.1A Resettable Fuse, 15V
MF-PSMF010X-2
brand logo

HT Part No. HT21822

Mfr. Part No. MF-PSMF010X-2

Manufacturer: Bourns

Technical Documents: MF-PSMF Series - PTC Resettable Fuses Data Sheet-ce92bb58(datasheets)

215 - In Stock pcs
Price:
£ 0.21
Units Per Unit Price
5 - 49 £ 0.21
50 - 99 £ 0.20
100 + £ 0.20
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Trip Current 0.3A
Voltage Rating 15V
Time to Trip 1.5s
Hold Current 0.1A
Maximum Current 40 A
Length 2.3mm
Height 0.85mm
Width 1.5mm
Terminal Material Gold Plated Nickel
Minimum Resistance 1Ω
Maximum Resistance 7.5Ω
Power Dissipation 0.5W
Minimum Operating Temperature -40°C
Package Size 0805
Maximum Operating Temperature +85°C
Series MF-PSMF
Dimensions 2.3 x 1.5 x 0.85mm
Operating Temperature Range -40 → +85 °C
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=68915&DisplayLogo=False

More Information

MF-PSMF Series Applications include USB port protection - On the Go and 2.0, PC motherboards - Plug and Play protection, mobile phones - battery and port protection, PDAs/digital cameras, game console port protection. Compact design to save board space - 0805 footprint
Small size results in very fast time to react to fault events
Low profile
