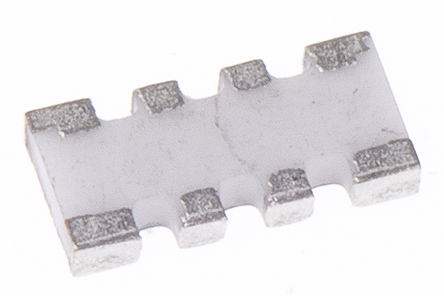

CAY16 Series Convex Chip Resistor Arrays
Bourns CAY 16 Series Chip Resistor Arrays available with either 4 or 8 isolated elements.
Convex terminals
Resistance tolerance ±1 % and ±5 %
Resistance range: 10 ohms to 1 megohm
HT Part No. HT22354
Mfr. Part No. CAY16-101J4LF
Manufacturer: Bourns
Technical Documents: CAT/CAY 16 Series - Chip Resistor Arrays Data Sheet-53d1d8bf(datasheets) Datasheet-ae4b72ab(datasheets)
| Product Attributes | |
|---|---|
| Resistance | 100Ω |
| Number of Resistors | 4 |
| Resistor Type | Array |
| Package/Case | 1206 (3216M) |
| Power Rating | 0.25W |
| Termination Style | Convex |
| Tolerance | ±5% |
| Case Style | Moulded |
| Power Rating per Resistor | 0.062W |
| Circuit Designator | ISOL |
| Length | 3.2mm |
| Depth | 1.6mm |
| Height | 0.5mm |
| Dimensions | 3.2 x 1.6 x 0.5mm |
| Number of Terminals | 8 |
| Series | CAY16 |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
| Temperature Coefficient | ±200ppm/°C |
