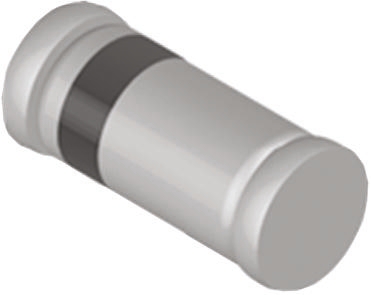

HT Part No. HT27140
Mfr. Part No. BAV103
Manufacturer: onsemi
Technical Documents: BAV103, High Voltage, General Purpose Diode Data Sheet-3d458568(datasheets) ESD Control Selection Guide V1-2eb8b7d1(datasheets)
| Product Attributes | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SOD-80 |
| Maximum Continuous Forward Current | 200mA |
| Peak Reverse Repetitive Voltage | 200V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Diode Type | Rectifier |
| Pin Count | 2 |
| Maximum Forward Voltage Drop | 1.25V |
| Number of Elements per Chip | 1 |
| Diode Technology | Silicon Junction |
| Peak Reverse Recovery Time | 50ns |
| Diameter | 1.5mm |
| Peak Non-Repetitive Forward Surge Current | 4A |
