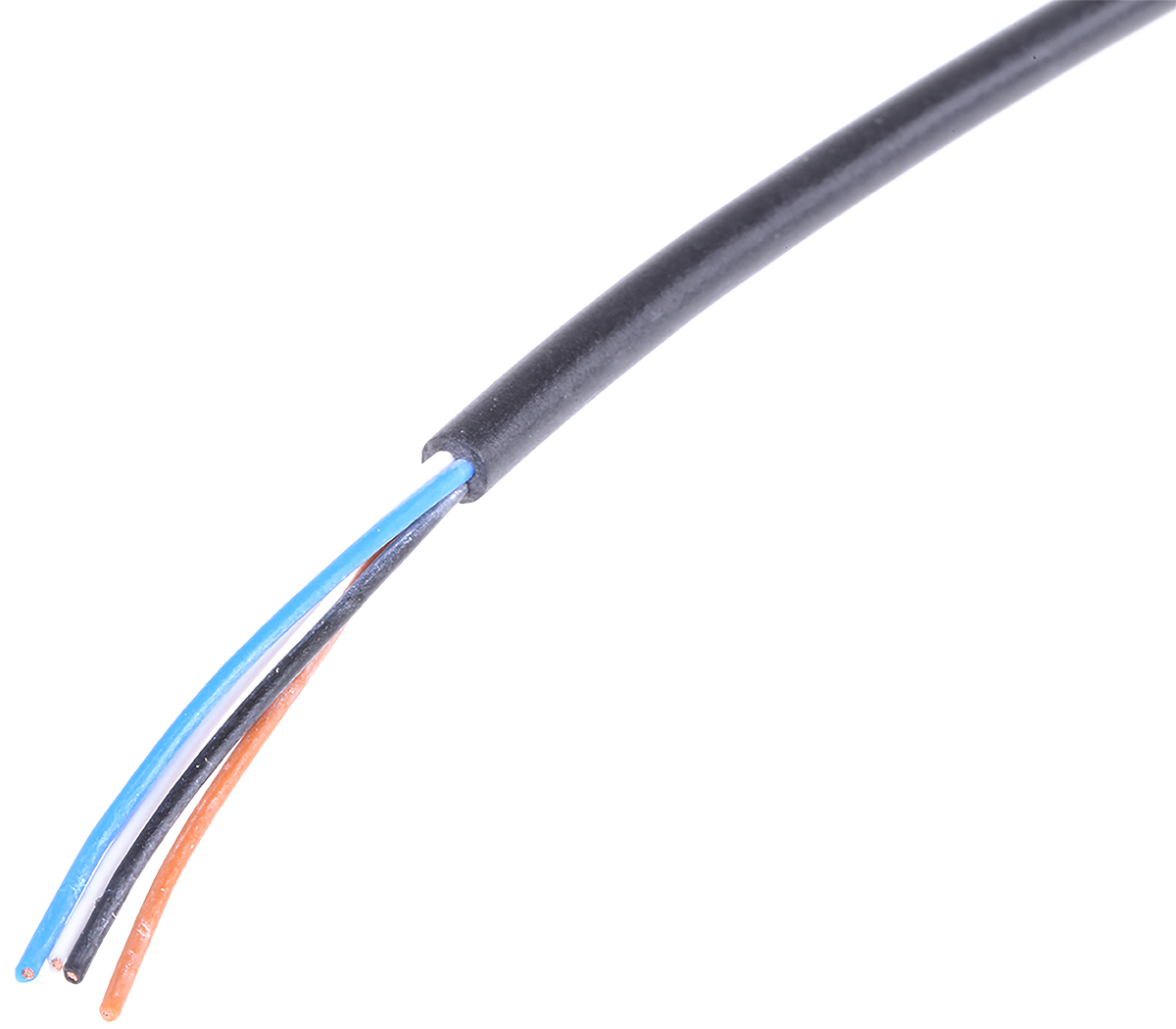

M8 Plug on Free conductor end
Sensor/ actuator cable (SAC)
Wiith M8 connector and free conductor end
Completely assembled
HT Part No. HT15330
Mfr. Part No. 1694143
Manufacturer: Phoenix Contact
Technical Documents: SAC-4P-M 8MS/10,0-PUR-c50606cf(datasheets)
| Product Attributes | |
|---|---|
| Cross Sectional Area | 0.25 mm² |
| Length | 10m |
| Connector 1 Number of Contacts | 4 |
| Connector 1 Gender | Male |
| Connector 1 | M8 |
| Voltage Rating | 30 V |
| Current Rating | 4 A |
| IP Rating | IP65, IP68, IP69K |
| American Wire Gauge | 24 AWG |
| Outer Diameter | 4.4mm |
| Insulation Material | PP |
