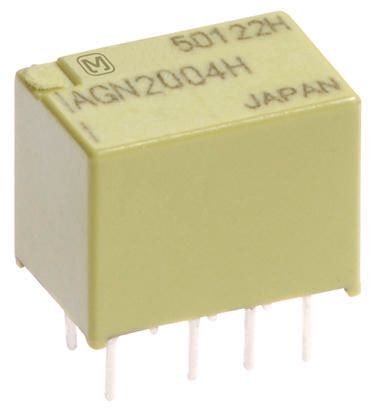

Panasonic Surface Mount Signal Relay, 4.5V dc Coil, 1A Switching Current, DPDT

agn2004h Panasonic Surface Mount Signal Relay, 4.5V dc Coil, 1A Switching Current, DPDT
AGN2004H
brand logo

HT Part No. HT17349

Mfr. Part No. AGN2004H

Manufacturer: Panasonic

Technical Documents: CSA LR26550-707-9c63c4ad(datasheets) Datasheet-337d9253(datasheets)

420 - In Stock pcs
Price:
£ 3.86
Units Per Unit Price
1 - 24 £ 3.86
25 - 99 £ 3.08
100 + £ 2.96
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Coil Voltage 4.5V dc
Contact Configuration DPDT
Mounting Type Surface Mount
Maximum Switching Current AC 0.3 A
Maximum Switching Current DC 1 A
Maximum Switching Voltage AC 125V
Maximum Switching Voltage DC 110V
Maximum Switching Power DC 30 W
Series AGN
Latching No
Length 10.6mm
Depth 5.7mm
Height 9mm
Dimensions 10 x 9 x 5.7mm
Terminal Type PCB Pin
Switching Current 1A
Number of Poles 2
Application General Purpose
Maximum Switching Power AC 37.5VA
Life 50000000 (Electrical) cycles
Contact Material Au Plated AgPd
Electrical Life 100000 Operations Cycles
Coil Resistance 144Ω
Operating Temperature Range -40 → +85°C
Maximum Operating Temperature +85°C
Isolation Coil To Contact 1.5kV rms
Features Compact Slim Body Saves Space, Increased Packaging Density, Sealed Construction allows Automatic Washing.
Coil Power 140mW
Minimum Operating Temperature -40°C

More Information

AGN Series These ultra-small PCB mount polarized relays have a compact slim body with a low height of 9mm and small surface area of 5.7 x 10.6 mm. They also offer outstanding surge resistance, increased packging density and high vibration and shock resistance. Typical applications include telecommunications and measurement equipment, audio visual equipment etc. Twin crossbar contacts ensures high contact reliability
High surge resistance
Compact slim body (9x5.7x10.6mm)
Sealed construction allows automatic washing
Typical applications include Telecommunications and Measurement equipment, Audio Visual equipment etc
