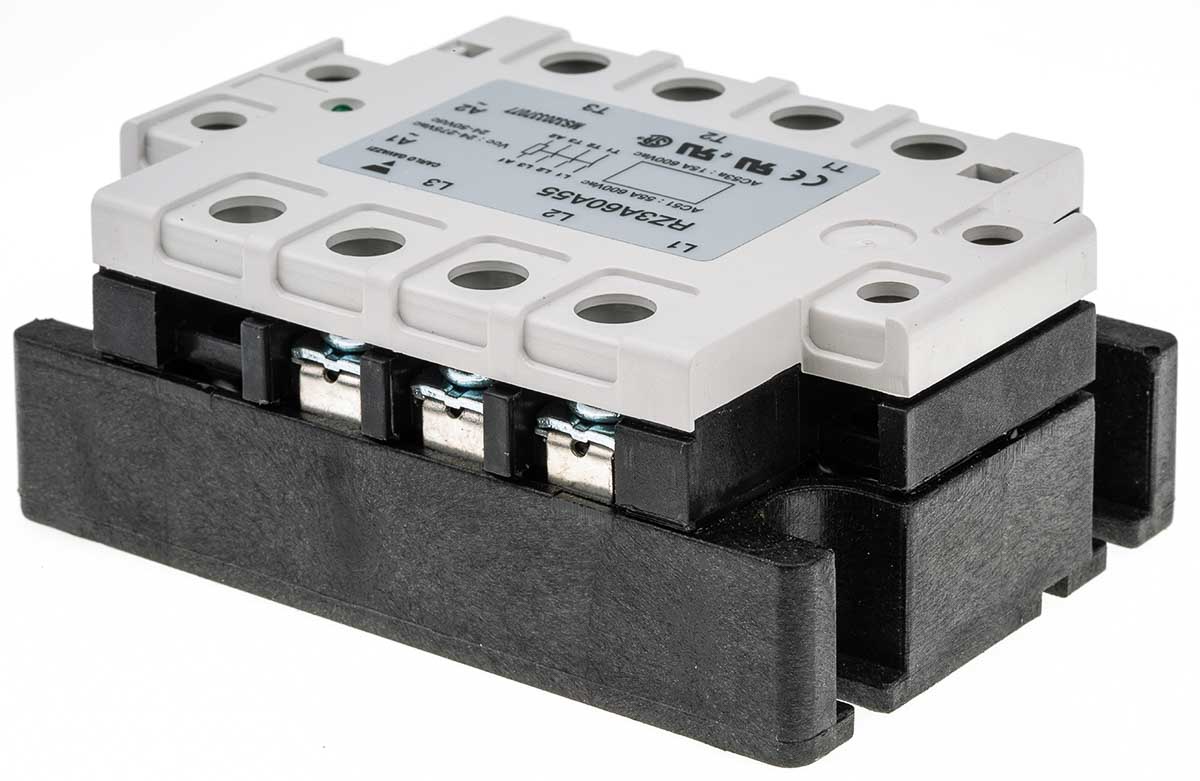

RZ3A Series solid state back panel mount relay
Three-phase AC solid state
back panel mount relay
Zero crossing switch
IP20 rating
LED indicator for the presence of control voltage
Frequency: 45 → 65 Hz
Integrated mains filter
Credit card transactions are currently being paused for maintenance. Please proceed with 'Cash with Order' while we restore the service.
| Product Attributes | |
|---|---|
| Maximum Load Current | 55 A rms |
| Mounting Type | Panel Mount |
| Maximum Load Voltage | 660 V |
| Maximum Control Voltage | 50 V dc, 275 V ac |
| Switching Type | Zero Cross |
| Control Voltage Range | 24 → 275 V ac, 24 → 50 V dc |
| Minimum Load Current | 250 mA |
| Load Voltage Range | 42 → 660V ac |
| Dimensions | 103 x 73.5 x 41mm |
| Depth | 73.5mm |
| Maximum Operating Temperature | +80°C |
| Minimum Operating Temperature | -30°C |
| Operating Temperature Range | -30 → +80°C |
| Length | 103mm |
| Height | 41mm |
