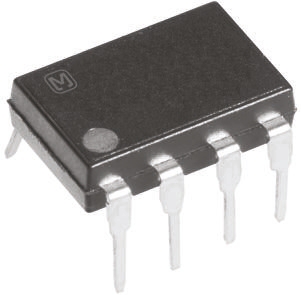

Panasonic Solid State Relay, 0.9 A Load, PCB Mount, 600 V Load, 1.3 V Control

aqh2213 Panasonic Solid State Relay, 0.9 A Load, PCB Mount, 600 V Load, 1.3 V Control
AQH2213
brand logo

HT Part No. HT20539

Mfr. Part No. AQH2213

Manufacturer: Panasonic

Technical Documents: AQH Relays Data Sheet-f08c9142(datasheets) Product Change Notification-220d8958(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 1.40
Units Per Unit Price
1 - 9 £ 1.40
10 - 99 £ 1.25
100 + £ 1.13
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Load Current 0.9 A
Mounting Type PCB Mount
Maximum Load Voltage 600 V
Maximum Control Voltage 1.3 V
Minimum Control Voltage 1.21 V
Switching Type Zero Cross
Control Voltage Range 1.21 → 1.3 V
Terminal Type Through Hole
Output Device Phototriac
Package Style DIP8
Load Voltage Range 100 → 200V ac
Maximum Turn On Time 0.1ms
Dimensions 9.78 x 6.4 x 3.9mm
Depth 6.4mm
Minimum Operating Temperature -30°C
Operating Temperature Range -30 → +85°C
Length 9.8mm
Maximum Operating Temperature +85°C
Height 3.9mm
Off State Leakage Current 100 μA

More Information

AQH Series These compact DIP type PCB mount solid state relays are ideal for AC load control and have a high dielectric strength. Typical applications include home appliances and industrial equipment. Compact DIP type SSR ideal for AC load control
Two types available, zero-cross (15V and 50V) and random types
High dielectric strength, 5000 Vac (between input and output)
