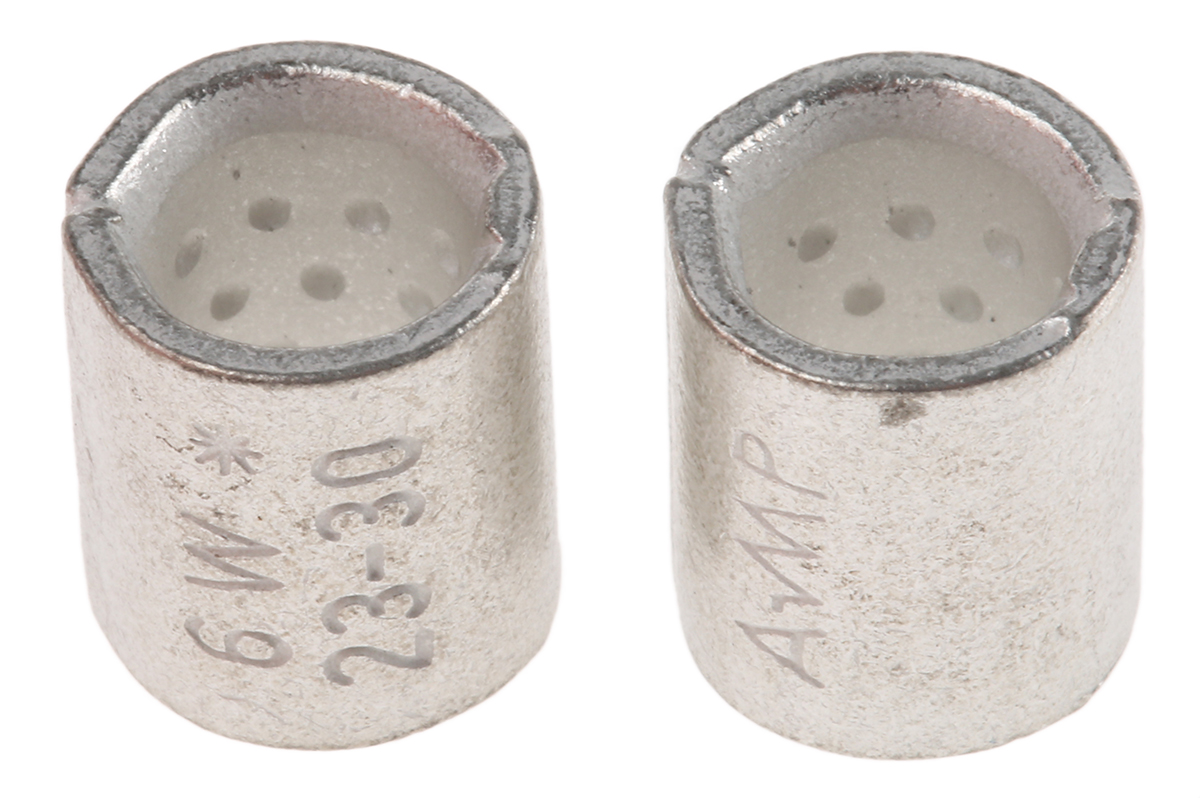

TE Connectivity, SOLISTRAND Parallel Splice Connector, Uninsulated, Tin 6 AWG

34319 TE Connectivity, SOLISTRAND Parallel Splice Connector, Uninsulated, Tin 6 AWG
34319
34319
HT21814
brand logo

HT Part No. HT21814

Mfr. Part No. 34319

Manufacturer: TE Connectivity

Technical Documents: Crimp parallel splice 11mm L, 13.3sq.mm-ddd41327(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Splice Type Parallel
Minimum Wire Size mm² 13mm²
Wire Size 6 AWG
Maximum Wire Size mm² 15mm²
Overall Length 11.1mm
Insulation Uninsulated
Series SOLISTRAND
Contact Material Copper
Contact Plating Tin
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=92258&DisplayLogo=False

More Information

TE Connectivity SOLISTRAND Closed Barrel Parallel Splices SOLISTRAND closed barrel parallel splices designed to terminate solid and stranded wire and irregular shaped conductors. These SOLISTRAND closed barrel parallel splices are made from fine grade high conductivity copper with tin plating and have closed barrels with brazed seams that create a uniform metal strength around the barrel. The inner surface of the barrels of these SOLISTRAND parallel splices are either dimpled or serrated for maximum tensile strength and to maximise the electrical contact area after crimping
