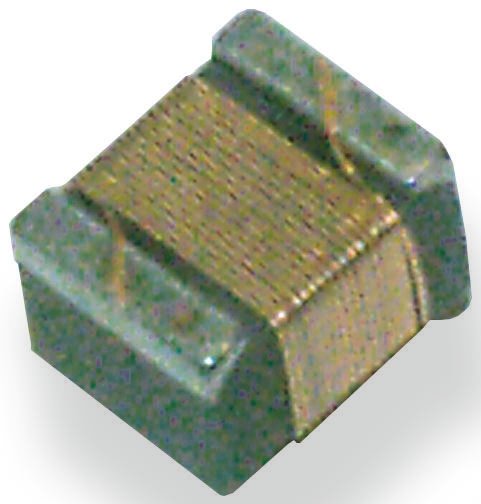

Murata, LQW15A_10, 0402 (1005M) Unshielded Wire-wound SMD Inductor with a Non-Magnetic Core Core, 3.3 nH ±0.5nH

lqw15an3n3d10d Murata, LQW15A_10, 0402 (1005M) Unshielded Wire-wound SMD Inductor with a Non-Magnetic Core Core, 3.3 nH ±0.5nH
LQW15AN3N3D10D
brand logo

HT Part No. HT16554

Mfr. Part No. LQW15AN3N3D10D

Manufacturer: Murata

Technical Documents: High Frequency Horizontal Wire Wound LQW15A_10 Series-0e9bbfc7(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0.039
Units Per Unit Price
10000 + £ 0.039
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 3.3 nH
Maximum DC Current 900mA
Package/Case 0402 (1005M)
Length 1mm
Depth 0.6mm
Height 0.5mm
Dimensions 1 x 0.6 x 0.5mm
Shielded No
Tolerance ±0.5nH
Maximum DC Resistance 40mΩ
Series LQW15A_10
Core Material Non-Magnetic Core
Maximum Self Resonant Frequency 12GHz
Minimum Quality Factor 30
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
Inductor Construction Wire-Wound

More Information

Murata 0402 LQW15A_10 Series Wire Wound Inductors High quality coil inductors designed for VHF and UHF applications.
High resonance frequency.
Low tolerance of inductance values.
Lower DC resistance values than the _00 series.
Applications: High frequency circuits for wireless telecommunications equipment such as Bluetooth, GSM, W-LAN.
