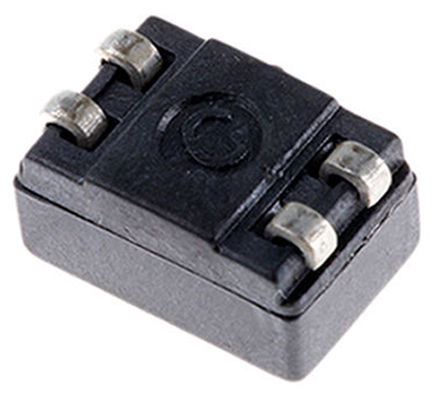

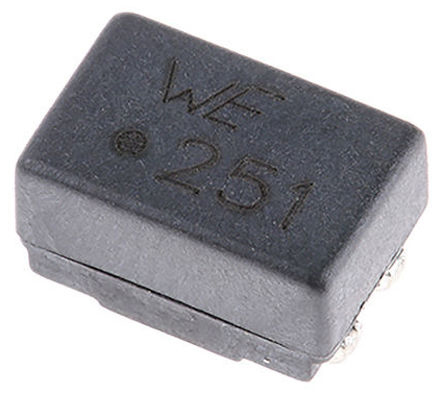

Wurth Elektronik 2 x 250 μH 1.2 A Common mode filter 2 x 0.13Ω 80V

744224 Wurth Elektronik 2 x 250 μH 1.2 A Common mode filter 2 x 0.13Ω 80V
744224
744224
HT16905
brand logo

HT Part No. HT16905

Mfr. Part No. 744224

Manufacturer: Wurth Elektronik

Technical Documents: Wurth Elektronik Common Mode Choke Datasheet-e186a6b6(datasheets) Datasheet-ef82e73b(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 1.57
Units Per Unit Price
5 - 24 £ 1.57
25 - 99 £ 1.38
100 + £ 1.27
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 2 x 250 μH
Series WE-SL2
Test Frequency 1 KHz
DC Resistance 2 x 0.13Ω
Maximum Current 1.2 A
Dimensions 9.2 x 6 x 5mm
Operating Temperature Range -40°C → +125°C
Mounting Type Surface Mount
Voltage Rating 80V
Termination Style Surface Mount
Height 5mm
Depth 6mm
Length 9.2mm
Maximum Operating Temperature +125°C
Minimum Operating Temperature -40°C

More Information

Wurth WE-SL2 Series SMD Common Mode Chokes Double current-compensated ring core choke
4-way SMD housing
Current rating up to 1.6A
Impedances up to 9kΩ Applications Chokes for bus systems such as CAN, USB, ISDN
Signal and data line filtering
Power supplies
Measuring signal lines
