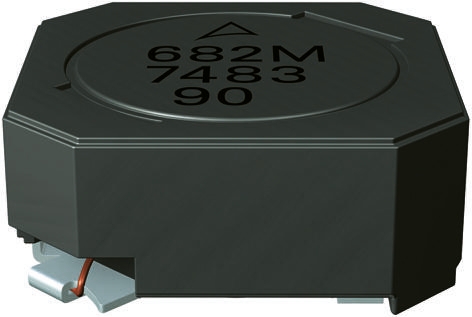

EPCOS, B82462-G4 Shielded Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% Wire-Wound 2.25A Idc

b82464g4223m000 EPCOS, B82462-G4 Shielded Wire-wound SMD Inductor with a Ferrite Core, 22 μH ±20% Wire-Wound 2.25A Idc
B82464G4223M000
brand logo

HT Part No. HT17000

Mfr. Part No. B82464G4223M000

Manufacturer: EPCOS

Technical Documents: Datasheet-e104285c(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0.60
Units Per Unit Price
750 + £ 0.60
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 22 μH
Maximum DC Current 2.25A
Length 10.4mm
Depth 10.4mm
Automotive Standard AEC-Q200
Height 4.8mm
Dimensions 10.4 x 10.4 x 4.8mm
Shielded Yes
Tolerance ±20%
Maximum DC Resistance 52mΩ
Series B82462-G4
Core Material Ferrite
Maximum Self Resonant Frequency 13MHz
Inductor Construction Wire-Wound
Minimum Operating Temperature -55°C
Maximum Operating Temperature +150°C

More Information

B82464-G4 Series Magnetically Shielded Wire Wound Chokes SMT size 10 x 10mm
Magnetically shielded
Ferrite core construction
Leadfree tinned terminals
Wide operating temperature -55°C → +125°C
Very high rated current
Low DC resistance
Applications in filtering of power supplies
