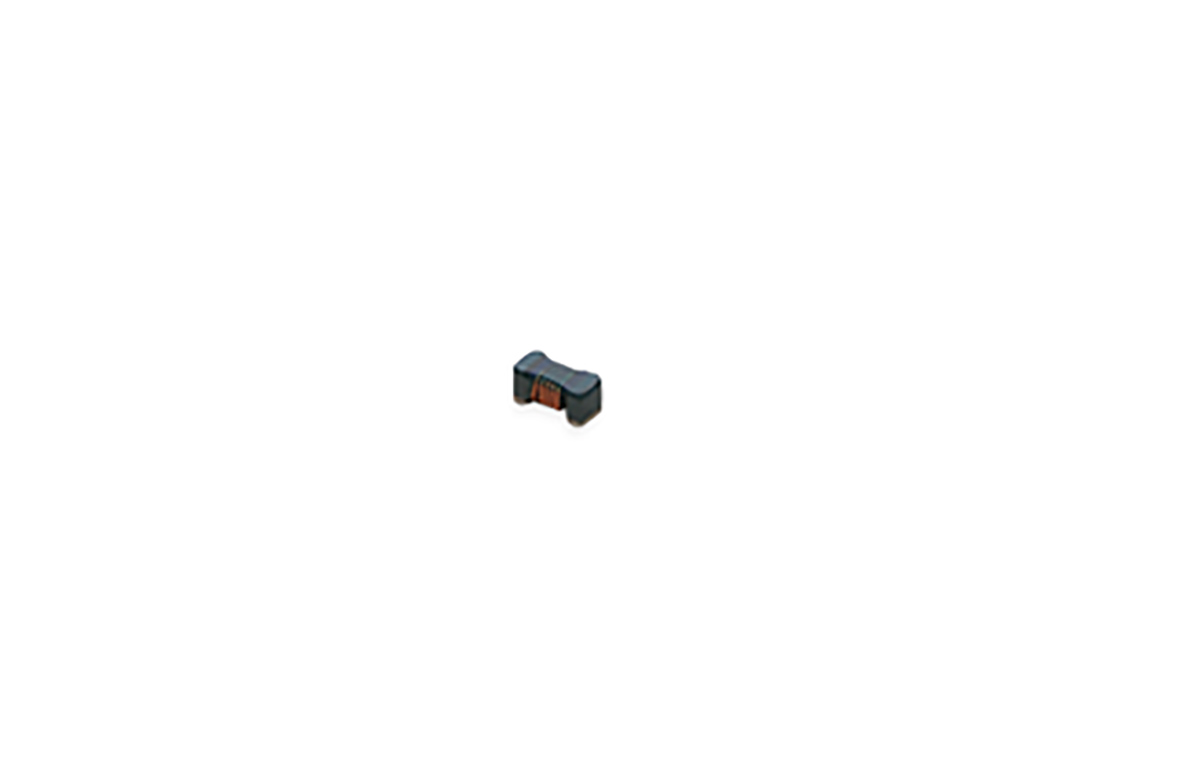

Murata, LQW15AN_00, 0402 (1005M) Unshielded Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 15 nH ±2%

lqw15an15ng00d Murata, LQW15AN_00, 0402 (1005M) Unshielded Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 15 nH ±2%
LQW15AN15NG00D
brand logo

HT Part No. HT19826

Mfr. Part No. LQW15AN15NG00D

Manufacturer: Murata

Technical Documents: Datasheet LQW15AN15NG00D-df160d23(datasheets)

3500 - In Stock pcs
Price:
£ 0.051
Units Per Unit Price
250 - 999 £ 0.051
1000 - 2499 £ 0.036
2500 + £ 0.032
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 15 nH
Maximum DC Current 460mA
Package/Case 0402 (1005M)
Length 1mm
Depth 0.6mm
Height 0.5mm
Dimensions 1 x 0.6 x 0.5mm
Shielded No
Tolerance ±2%
Maximum DC Resistance 160mΩ
Series LQW15AN_00
Core Material Non-Magnetic Ceramic
Maximum Self Resonant Frequency 5GHz
Minimum Quality Factor 30
Minimum Operating Temperature -55°C
Inductor Construction Wire-Wound
Maximum Operating Temperature +125°C

More Information

Murata's lineup of inductors for high-frequency circuits features ultra-compact film-type inductors, general-purpose multilayer inductors, and high-Q, high-current supporting wire-wound type inductors, all of which are used in high-frequency circuits. These inductors are recommended for all high-frequency circuits, including mobile phone RF modules, Wi-Fi modules, Bluetooth® modules, and various types of matching circuits.
