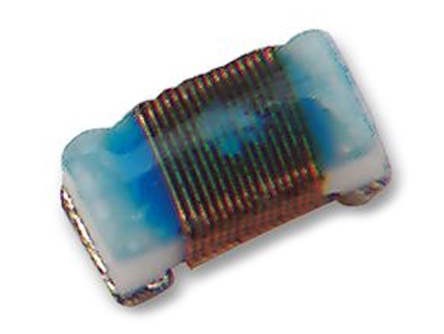

Murata, LQW15A_00, 0402 Unshielded Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 33 nH ±2% Wire-Wound 260mA

lqw15an33ng00d Murata, LQW15A_00, 0402 Unshielded Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 33 nH ±2% Wire-Wound 260mA
LQW15AN33NG00D
brand logo

HT Part No. HT20565

Mfr. Part No. LQW15AN33NG00D

Manufacturer: Murata

Technical Documents: Murata LQW15AN33NG00D Fixed Inductor Datasheet-0de7d7dc(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0.038
Units Per Unit Price
10000 - 19999 £ 0.038
20000 + £ 0.036
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 33 nH
Maximum DC Current 260mA
Package/Case 0402
Length 1mm
Depth 0.5mm
Height 0.5mm
Dimensions 1 x 0.5 x 0.5mm
Shielded No
Tolerance ±2%
Maximum DC Resistance 630mΩ
Series LQW15A_00
Core Material Non-Magnetic Ceramic
Maximum Self Resonant Frequency 3.2GHz
Minimum Quality Factor 25
Maximum Operating Temperature +125°C
Inductor Construction Wire-Wound
Minimum Operating Temperature -55°C

More Information

Murata 0402 LQW15AN_00D Series Wire Wound Inductors (0.051μH - 0.12μH) High quality coil inductors designed for VHF and UHF applications.
High resonance frequency.
Low tolerance of inductance values.
Applications: High frequency circuits for wireless telecommunications equipment such as Bluetooth, GSM, W-LAN.
