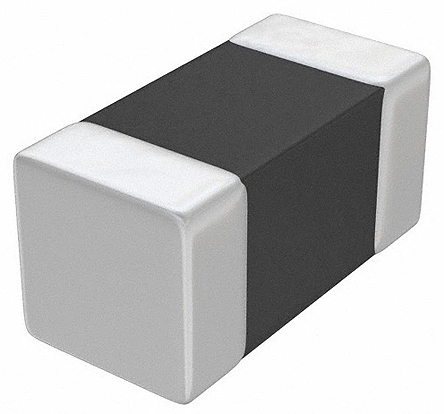

Murata, LQG15HS, 0402 (1005M) Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 12 nH ±5% Multilayer 300mA Idc

lqg15hs12nj02d Murata, LQG15HS, 0402 (1005M) Wire-wound SMD Inductor with a Non-Magnetic Ceramic Core, 12 nH ±5% Multilayer 300mA Idc
LQG15HS12NJ02D
brand logo

HT Part No. HT20573

Mfr. Part No. LQG15HS12NJ02D

Manufacturer: Murata

Technical Documents: Murata LQG15HS12NJ02D Fixed Inductor Datasheet-a5308e71(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0.012
Units Per Unit Price
10000 - 19999 £ 0.012
20000 + £ 0.0099
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 12 nH
Maximum DC Current 300mA
Package/Case 0402 (1005M)
Length 1mm
Depth 0.5mm
Height 0.5mm
Dimensions 1 x 0.5 x 0.5mm
Tolerance ±5%
Maximum DC Resistance 280mΩ
Series LQG15HS
Core Material Non-Magnetic Ceramic
Maximum Self Resonant Frequency 3GHz
Moulded Yes
Inductor Construction Multilayer
Minimum Quality Factor 8
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C

More Information

Murata 0402 LQG15HS Series High Frequency Chip Inductors LQGH15HS inductors from Murata are general use multilayer surface mount inductors. Despite a lower Q factor than wire wound equivalents, the multilayer construction provides excellent balance between rated current, size and L value tolerance among others.

LQGH15HS SMD inductors are highly reliable and suitable for application in chokes, WLAN networks, RF circuit matching and mobile communication equipment resonance. Can be used in high frequency circuits
Lower DC resistance enables devices to use less power
Stable at high frequencies
