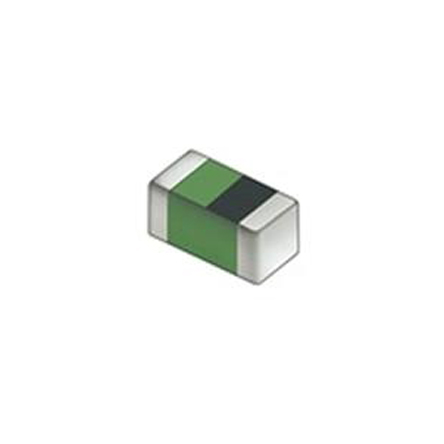

Murata, LQG15HN, 0402 (1005M) Multilayer Surface Mount Inductor 6.8 nH ±5% Multilayer 300mA Idc Q:8

lqg15hn6n8j02d Murata, LQG15HN, 0402 (1005M) Multilayer Surface Mount Inductor 6.8 nH ±5% Multilayer 300mA Idc Q:8
LQG15HN6N8J02D
brand logo

HT Part No. HT20703

Mfr. Part No. LQG15HN6N8J02D

Manufacturer: Murata

Technical Documents: Murata LQG15HN Series Chip Inductors Datasheet-8da16f66(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0.018
Units Per Unit Price
200 + £ 0.018
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 6.8 nH
Maximum DC Current 300mA
Package/Case 0402 (1005M)
Length 1mm
Depth 0.5mm
Height 0.5mm
Dimensions 1 x 0.5 x 0.5mm
Tolerance ±5%
Maximum DC Resistance 290mΩ
Series LQG15HN
Minimum Quality Factor 8
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
Moulded Yes
Inductor Construction Multilayer

More Information

Murata 0402 LQG15HN Series High Frequency Chip Inductors LQG15HN SMD inductors from Murata feature a multilayer construction. Despite a lower Q factor than wire wound equivalents, the multilayer construction provides excellent balance between rated current, size and L value tolerance among others.

LQGH15HS SMD inductors are highly reliable and suitable for application in chokes, WLAN networks, RF circuit matching and mobile communication equipment resonance. Can be used in high frequency circuits
Excellent stability at high frequencies
Monolithic structure
