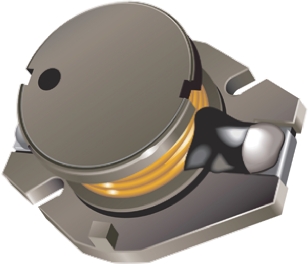

Bourns, SDR1005, 1005 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 100 μH ±10% Wire-Wound 1A Idc Q:41

sdr1005-101kl Bourns, SDR1005, 1005 Unshielded Wire-wound SMD Inductor with a Ferrite DR Core, 100 μH ±10% Wire-Wound 1A Idc Q:41
SDR1005-101KL
brand logo

HT Part No. HT24467

Mfr. Part No. SDR1005-101KL

Manufacturer: Bourns

Technical Documents: SDR1005 Series - SMD Power Inductors Data Sheet-0b23e3e6(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 100 μH
Maximum DC Current 1A
Package/Case 1005
Length 12.7mm
Depth 10mm
Height 5mm
Dimensions 12.7 x 10 x 5mm
Shielded No
Tolerance ±10%
Maximum DC Resistance 330mΩ
Series SDR1005
Core Material Ferrite DR
Maximum Self Resonant Frequency 8MHz
Maximum Operating Temperature +125°C
Inductor Construction Wire-Wound
Minimum Operating Temperature -40°C
Minimum Quality Factor 41
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1727130&DisplayLogo=False

More Information

SDR1005 Series Wire Wound Chokes Available in E6 series
Low profile of only 5.0mm
Inductance as low as 0.68μH
RoHS compliant
Applications in input/output of DC/DC Converters, Power Supplies
