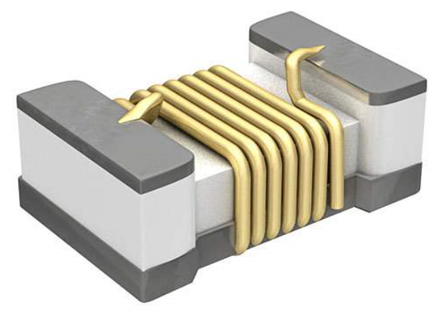

Murata, LQW15AN_00, 0402 (1005M) Unshielded Wire-wound SMD Inductor with a Ferrite Core, 43 nH ±5% Wire-Wound 250mA Idc

lqw15an43nj00d Murata, LQW15AN_00, 0402 (1005M) Unshielded Wire-wound SMD Inductor with a Ferrite Core, 43 nH ±5% Wire-Wound 250mA Idc
LQW15AN43NJ00D
brand logo

HT Part No. HT25957

Mfr. Part No. LQW15AN43NJ00D

Manufacturer: Murata

Technical Documents: LQW15AN_00 Series (0402 Size) Data Sheet-1b6eab1c(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 43 nH
Maximum DC Current 250mA
Package/Case 0402 (1005M)
Length 1mm
Depth 0.5mm
Height 0.5mm
Dimensions 1 x 0.5 x 0.5mm
Shielded No
Tolerance ±5%
Maximum DC Resistance 700mΩ
Series LQW15AN_00
Core Material Ferrite
Maximum Self Resonant Frequency 3GHz
Inductor Construction Wire-Wound
Maximum Operating Temperature +125°C
Minimum Quality Factor 25
Minimum Operating Temperature -55°C

More Information

Murata 0402 LQW15AN_00D Series Wire Wound Inductors (0.01μH - 0.047μH) High quality coil inductors designed for VHF and UHF applications.
High resonance frequency.
Low tolerance of inductance values.
Applications: High frequency circuits for wireless telecommunications equipment such as Bluetooth, GSM, W-LAN.
