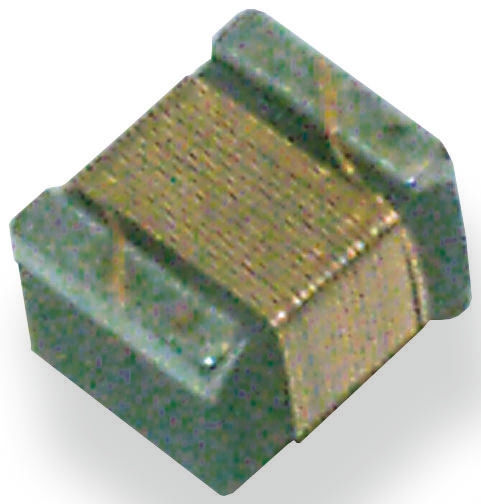

Murata, LQW15A, 0402 Unshielded Wire-wound SMD Inductor with a Ferrite Core, 10 nH ±5% Wire-Wound 500mA Idc Q:25

lqw15an10nj00d Murata, LQW15A, 0402 Unshielded Wire-wound SMD Inductor with a Ferrite Core, 10 nH ±5% Wire-Wound 500mA Idc Q:25
LQW15AN10NJ00D
brand logo

HT Part No. HT26808

Mfr. Part No. LQW15AN10NJ00D

Manufacturer: Murata

Technical Documents: Chip Coils ( LQW15A_ 00 Series( 0402 size)-553c6f41(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 10 nH
Maximum DC Current 500mA
Package/Case 0402
Length 1mm
Depth 0.6mm
Height 0.5mm
Dimensions 1 x 0.6 x 0.5mm
Shielded No
Tolerance ±5%
Maximum DC Resistance 170mΩ
Series LQW15A
Core Material Ferrite
Maximum Self Resonant Frequency 5.5GHz
Minimum Quality Factor 25
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
Inductor Construction Wire-Wound

More Information

Murata 0402 LQW15AN_00D Series Wire Wound Inductors (0.01μH - 0.047μH) High quality coil inductors designed for VHF and UHF applications.
High resonance frequency.
Low tolerance of inductance values.
Applications: High frequency circuits for wireless telecommunications equipment such as Bluetooth, GSM, W-LAN.
