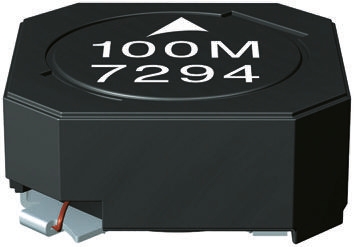

EPCOS, B82462-G4 Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% Wire-Wound 750mA Idc

b82462g4473m000 EPCOS, B82462-G4 Shielded Wire-wound SMD Inductor with a Ferrite Core, 47 μH ±20% Wire-Wound 750mA Idc
B82462G4473M000
brand logo

HT Part No. HT28348

Mfr. Part No. B82462G4473M000

Manufacturer: EPCOS

Technical Documents: Datasheet-f972e698(datasheets)

10 - In Stock pcs
Price:
£ 1.02
Units Per Unit Price
5 + £ 1.02
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Inductance 47 μH
Maximum DC Current 750mA
Length 6.3mm
Depth 6.3mm
Height 3mm
Dimensions 6.3 x 6.3 x 3mm
Shielded Yes
Tolerance ±20%
Maximum DC Resistance 340mΩ
Series B82462-G4
Core Material Ferrite
Maximum Self Resonant Frequency 13MHz
Maximum Operating Temperature +150°C
Inductor Construction Wire-Wound
Minimum Operating Temperature -55°C

More Information

B82462-G4 Series Magnetically Shielded Wire Wound Chokes SMT size 6 x 6 mm
Ferrite core construction
Magnetically shielded
Winding enamel copper wire
Wide operating temperature -55°C → +125°C
Suitable for reflow soldering
Applications in filtering of power supplies
