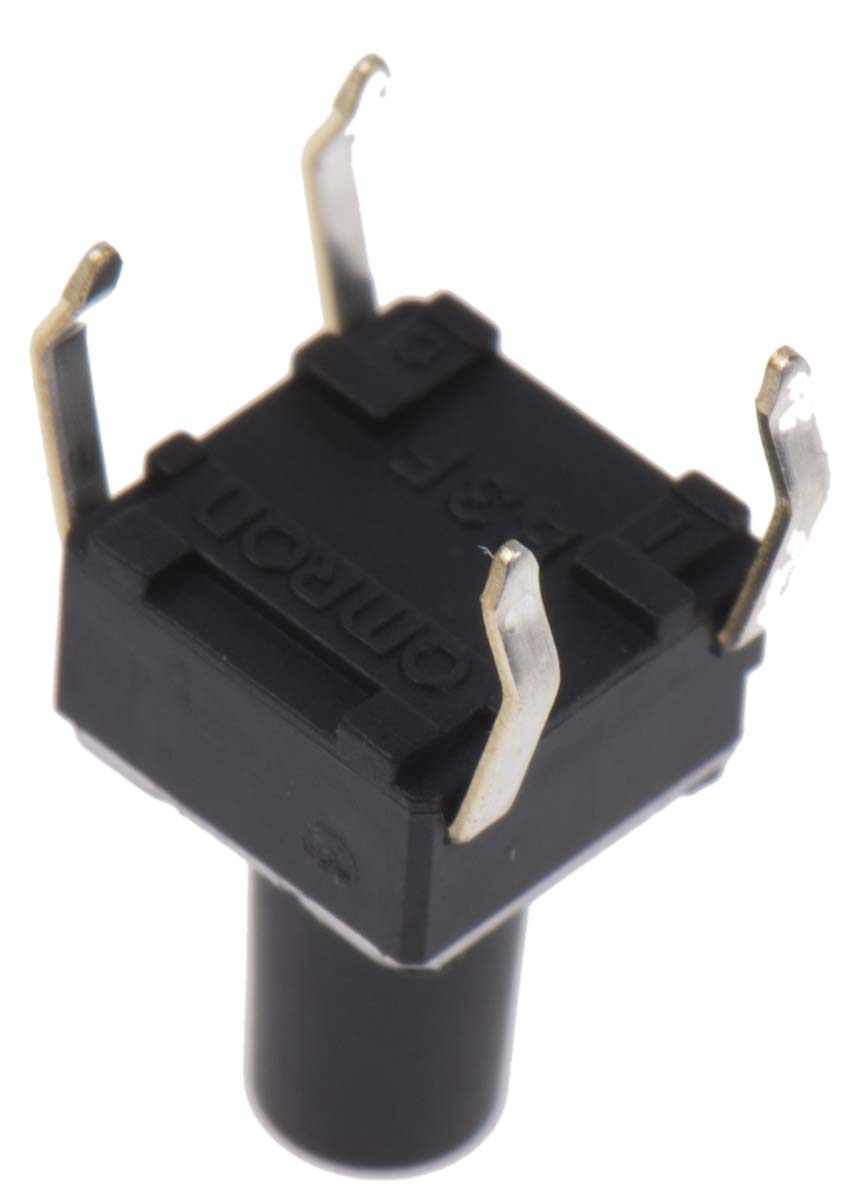

Plunger Tactile Switch, SPST 50 mA @ 24 V dc 6.1mm Through Hole

b3f-1070 Plunger Tactile Switch, SPST 50 mA @ 24 V dc 6.1mm Through Hole
B3F-1070
B3F-1070
HT15388
brand logo

HT Part No. HT15388

Mfr. Part No. B3F-1070

Manufacturer: Omron

Technical Documents: Text Tactile Switch B3F Data Sheet-a3c6f999(datasheets) Datasheet-e0cddc0c(datasheets)

118 - In Stock pcs
Price:
£ 2.19
Units Per Unit Price
1 - 9 £ 2.19
10 - 24 £ 1.97
25 + £ 1.80
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Contact Configuration SPST
Terminal Type Through Hole
Actuator Length 6.1mm
Actuator Type Plunger
Length 6mm
Width 6mm
Dimensions 6 x 6 x 9.5mm
Mounting Type Through Hole
Contact Current Rating 50 mA @ 24 V dc
Height 9.5mm
Operating Force 0.98 N
Operating Temperature Range -25 → +70°C
Mechanical Life 1000000Operations
Maximum Operating Temperature +70°C
Contact Material Gold Plated
Minimum Operating Temperature -25°C

More Information

Tactile Switches Omron B3F1000 series (6 x 6 mm) Ideal for applications such as audio, office and communications equipment, measuring instruments, TVs, PVRs, etc.,Models available with flat and projected actuators Positive click action plus a long life equal to that of a no-contact switch.
