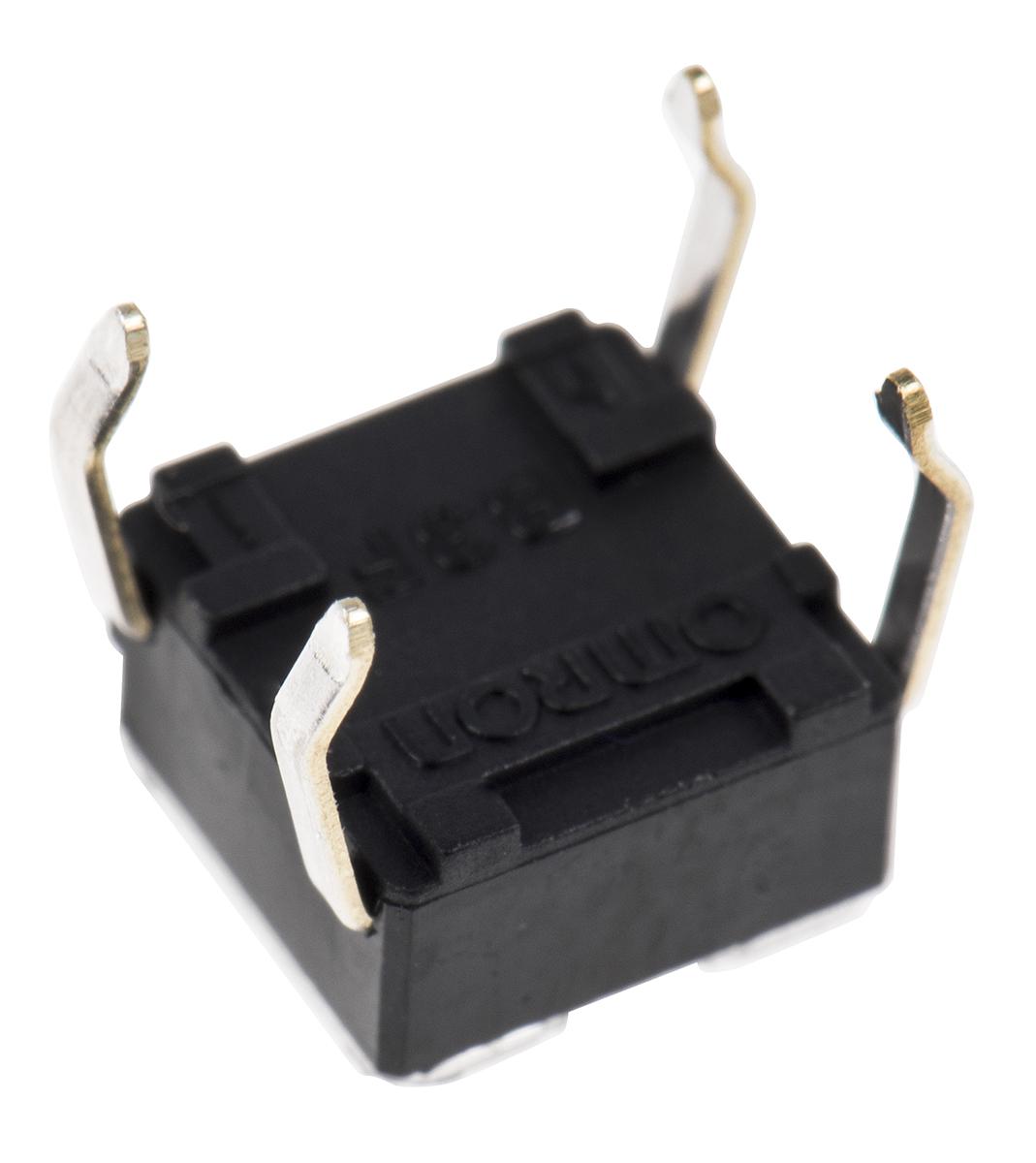

Black Plunger Tactile Switch, SPST 50 mA @ 24 V dc 0.9mm Through Hole

b3f-1020 Black Plunger Tactile Switch, SPST 50 mA @ 24 V dc 0.9mm Through Hole
B3F-1020
B3F-1020
HT16904
brand logo

HT Part No. HT16904

Mfr. Part No. B3F-1020

Manufacturer: Omron

Technical Documents: Text Tactile Switch B3F Data Sheet-a3c6f999(datasheets) Datasheet-98d63e39(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0.51
Units Per Unit Price
5 - 49 £ 0.51
50 - 124 £ 0.46
125 + £ 0.42
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Contact Configuration SPST
Terminal Type Through Hole
Actuator Length 0.9mm
Actuator Colour Black
Actuator Type Plunger
Length 6mm
Width 6mm
Dimensions 6 x 6 x 5mm
Mounting Type Through Hole
Contact Current Rating 50 mA @ 24 V dc
Operating Force 0.98 N
Height 5mm
Mechanical Life 1000000Operations
Operating Temperature Range -25 → +70°C
Contact Material Gold Plated
Minimum Operating Temperature -25°C
Maximum Operating Temperature +70°C

More Information

Tactile Switches Omron B3F1000 series (6 x 6 mm) Ideal for applications such as audio, office and communications equipment, measuring instruments, TVs, PVRs, etc.,Models available with flat and projected actuators Positive click action plus a long life equal to that of a no-contact switch.
