Phoenix Contact Thermal Circuit Breaker - TCP 2A Single Pole 65 V dc, 250V ac Voltage Rating, 2A Current Rating

0712217 Phoenix Contact Thermal Circuit Breaker - TCP 2A Single Pole 65 V dc, 250V ac Voltage Rating, 2A Current Rating
0712217
brand logo

HT Part No. HT25717

Mfr. Part No. 0712217

Manufacturer: Phoenix Contact

Technical Documents: Datasheet 0712217-88f6f640(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Current Rating 2A
Number of Poles 1
Voltage Rating 65 V dc, 250V ac
Width 8.2mm
Series TCP 2A
Circuit Breaker Type Thermal Magnetic Circuit Breaker
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=1703786&DisplayLogo=False

More Information

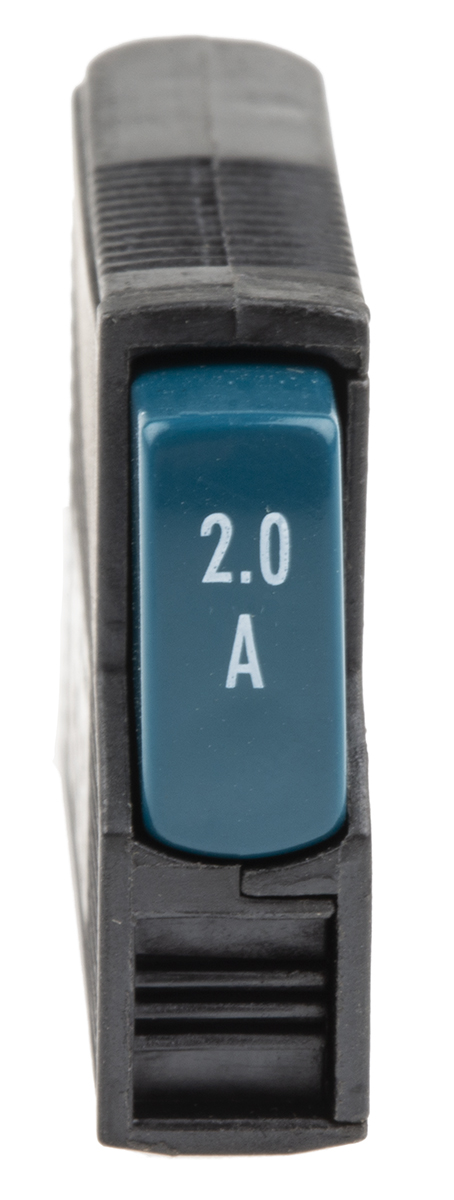

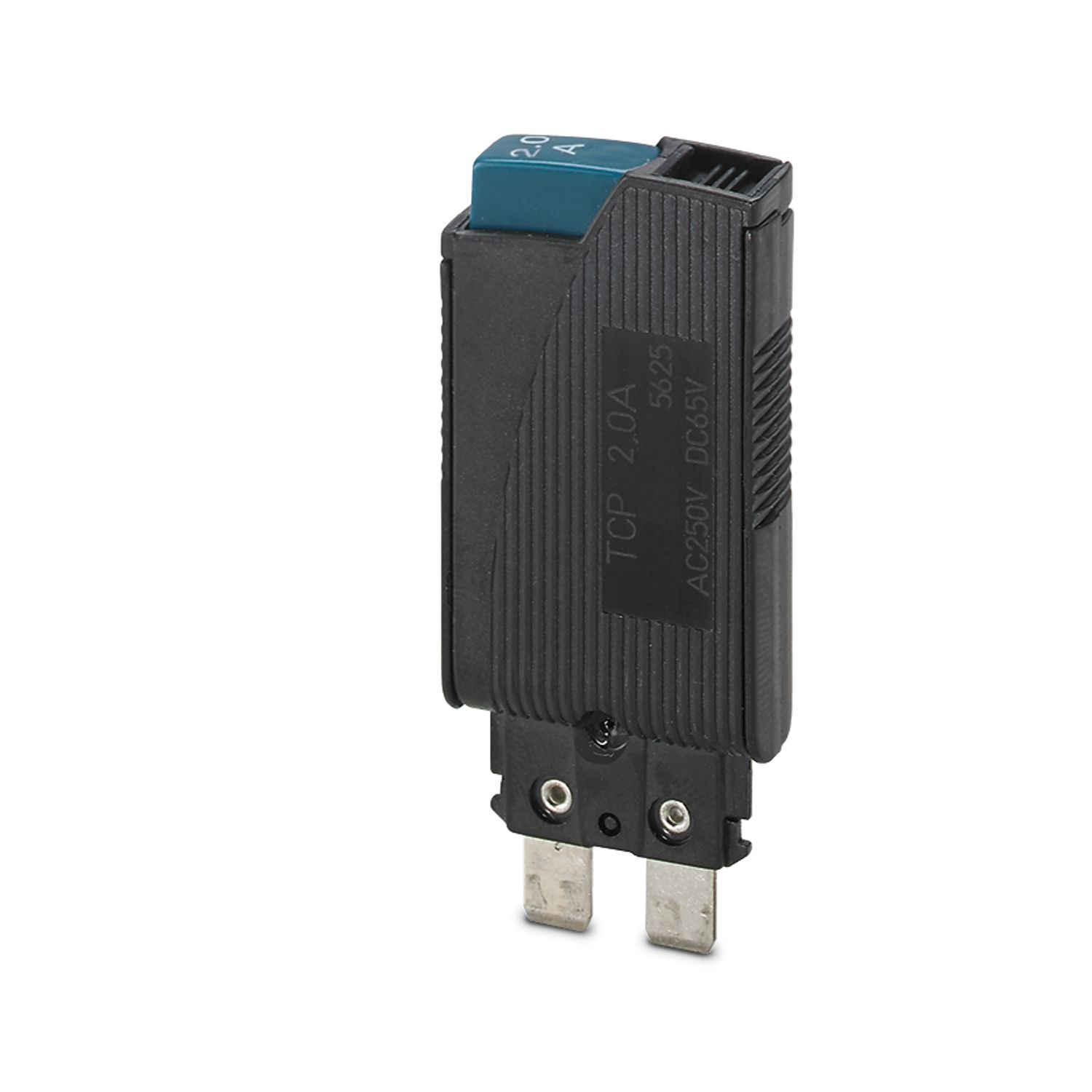

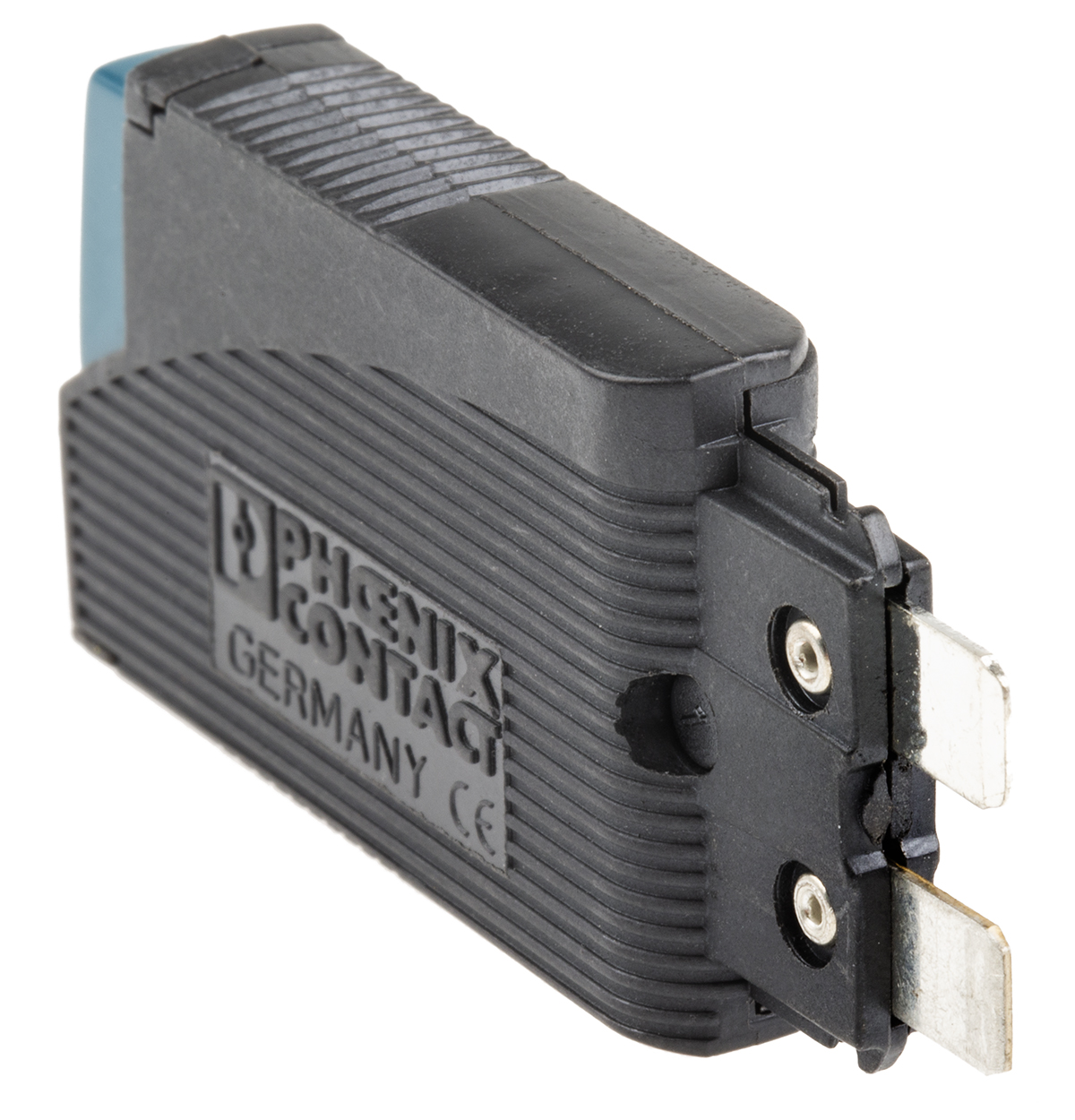

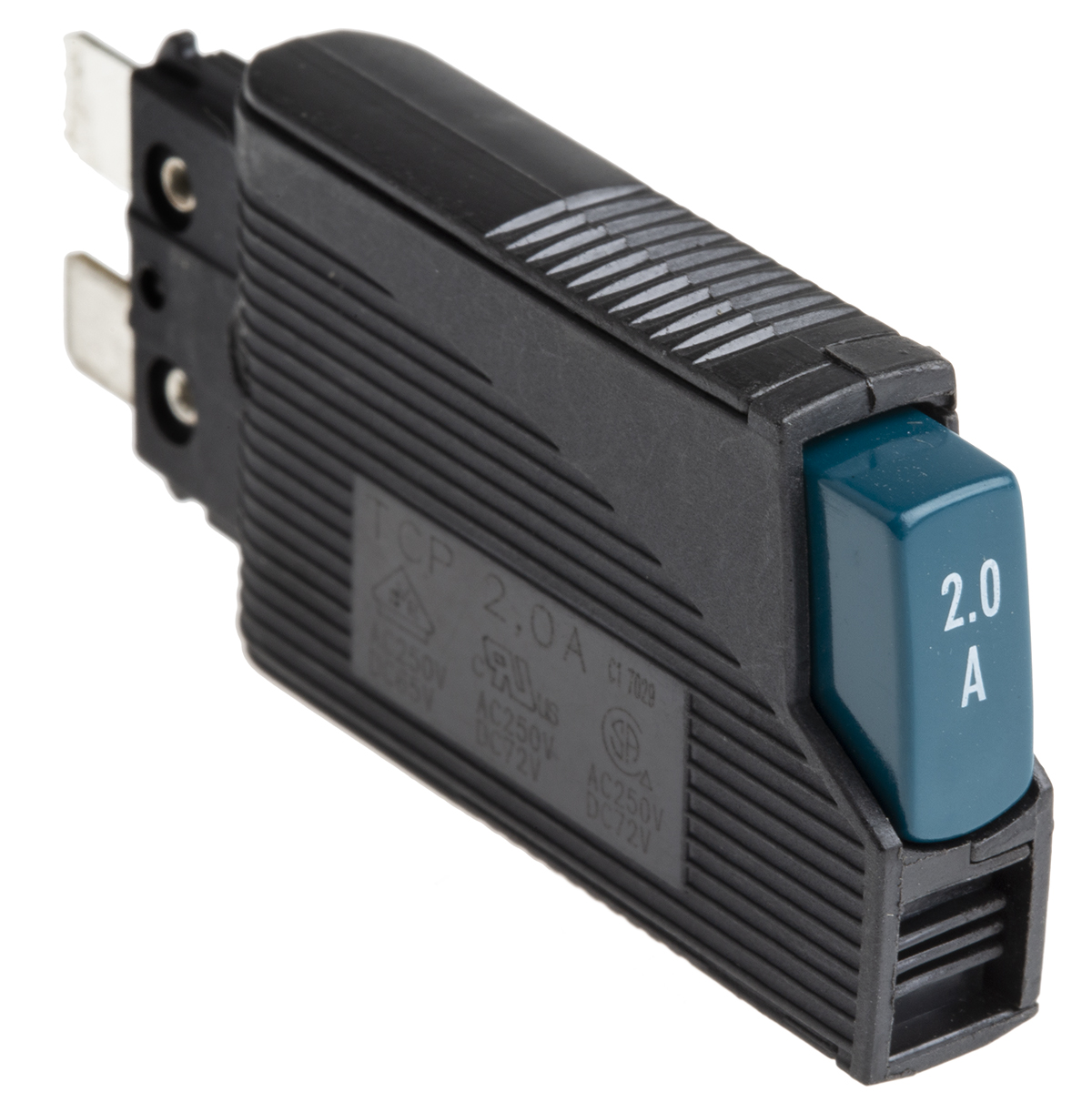

Phoenix Contact TCP Thermal Circuit Breaker The compact TCP range of miniature thermal circuit breakers from Phoenix contacts have an integrated switching function which enables instant re-closure to ensure the availability of the system. Features and Benefits • IP40 rating
• Slow blow fuse
• Only 8.2mm wide
• Re-closable
• Available with nominal current levels from 0.1 to 10 A
• Screw or spring cage connections used as a basic terminal block
