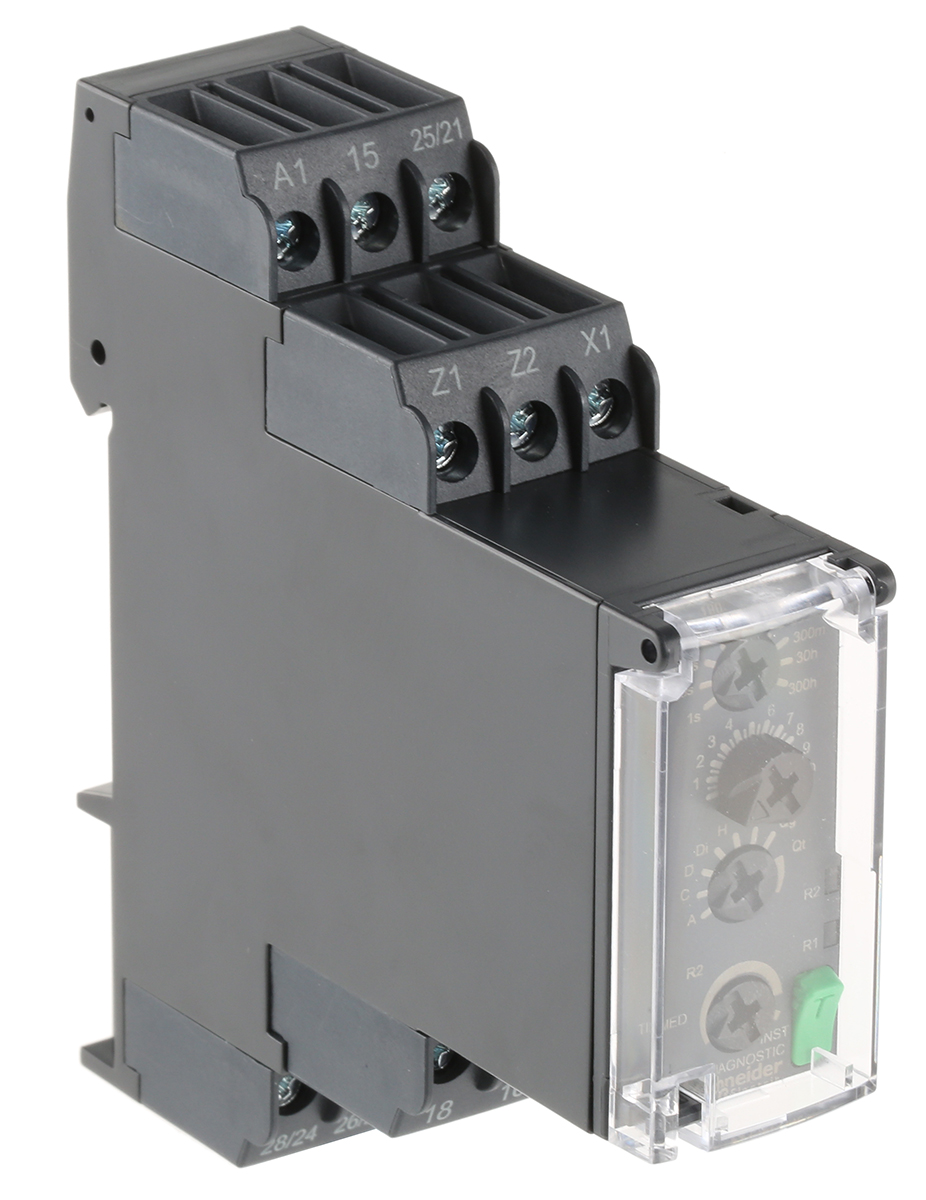

HT Part No. HT21756
Mfr. Part No. RE22R2MYMR
Manufacturer: Schneider Electric
Technical Documents: RE22 Series Product Guides-8f2b85a3(datasheets) Datasheet-11c91b88(datasheets) Zelio Selection Guide-7e3a02e9(datasheets) Line Drawing - RE22R2MYMR-b0f56622(datasheets) Catalogue - Harmony Timer Relays-cdafc0e1(datasheets) Product Environmental Profile-a17d5a6f(datasheets)
| Product Attributes | |
|---|---|
| Supply Voltage | 24 → 240V ac/dc |
| Mounting Type | DIN Rail |
| Mode of Operation | OFF Delay, ON Delay |
| Time Range | 0.05 → 1 s, 0.3 → 3 s, 1 → 10 s, 10 → 100 s, 3 → 30 h, 3 → 30 min, 3 → 30 s, 30 → 300 h, 30 → 300 min, 30 → 300s |
| Number of Contacts | 2 |
| Number of Timer Functions | Multi Function |
| Contact Configuration | DPDT |
| Time Increment | Hours, Minutes, Seconds |
| Maximum Current | 8A |
| Maximum Voltage | 240V ac/dc |
| Terminal Type | Screw |
| Switch Configuration | DPCO |
| Power Supply | External |
| Minimum Voltage | 24V ac/dc |
| Width | 90mm |
| Minimum Current | 10mA |
| Better World Product | Yes |
| Length | 22.9mm |
| Depth | 79.5mm |
| Better World Verification | Green Premium |
| Maximum Operating Temperature | +60°C |
| Series | Harmony Time |
| Minimum Operating Temperature | -20°C |
| Time Delay | <100ms |
| 3D Model | https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=151216&DisplayLogo=False |
