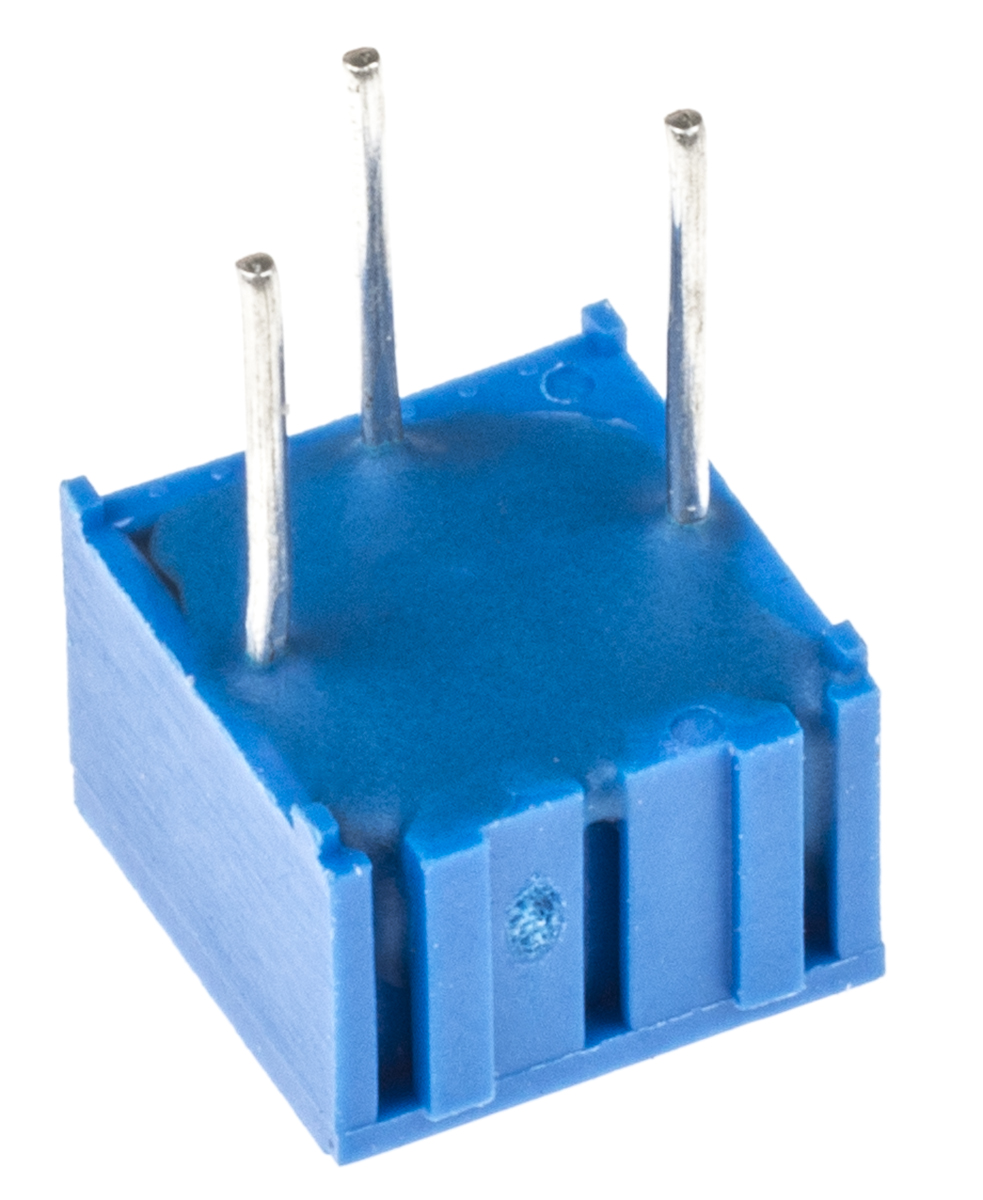

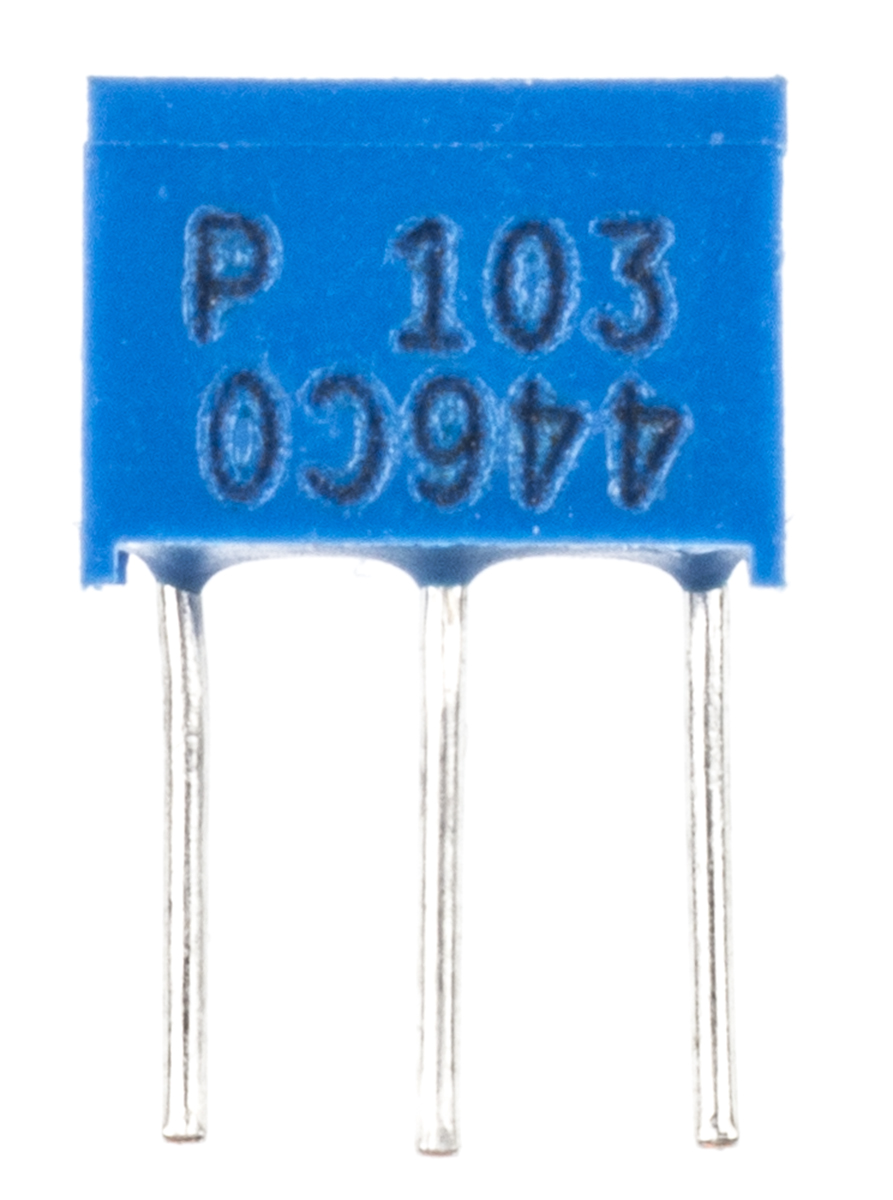

10kΩ, Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns, 3362

3362p-1-103lf 10kΩ, Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns, 3362
3362P-1-103LF
3362P-1-103LF
HT16264
HT16264
Trimmer Potentiometers
brand logo

HT Part No. HT16264

Mfr. Part No. 3362P-1-103LF

Manufacturer: Bourns

Technical Documents: Datasheet-4c6eb573(datasheets)

350 - In Stock pcs
Price:
£ 0.58
Units Per Unit Price
50 - 249 £ 0.58
250 - 499 £ 0.54
500 + £ 0.48
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Resistance 10kΩ
Mounting Type Through Hole
Number of Turns 1
Orientation Top Adjust
Power Rating 0.5W
Series 3362
Termination Style Pin
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Length 6.6mm
Shaft Diameter 2.77 mm
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C

More Information

Cermet 1//4 in. Square 500mW Top Adjust 3362P Series Miniature package
Rotor designed for automatic machine adjust interface
Sealed to withstand harsh environments and immersion cleaning
Built in board stand offs
Multi-wire wiper to minimise contact resistance variation
