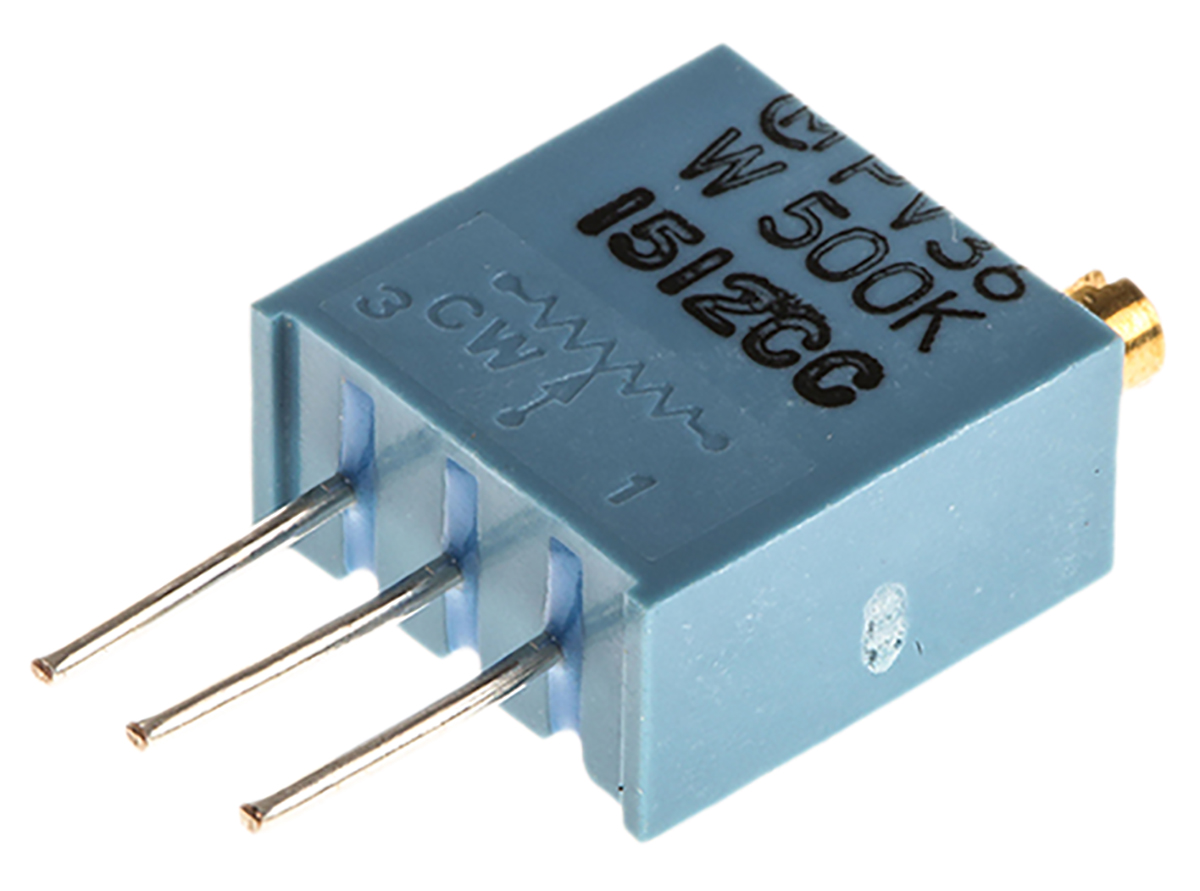

500kΩ, Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns, PV36

pv36w504c01b00 500kΩ, Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns, PV36
PV36W504C01B00
brand logo

HT Part No. HT16770

Mfr. Part No. PV36W504C01B00

Manufacturer: Bourns

Technical Documents: Datasheet-6fa9b76a(datasheets)

51 - In Stock pcs
Price:
£ 1.18
Units Per Unit Price
1 - 24 £ 1.18
25 - 49 £ 1.11
50 + £ 1.04
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Resistance 500kΩ
Mounting Type Through Hole
Number of Turns 25
Orientation Top Adjust
Power Rating 0.5W
Series PV36
Termination Style Solder Pin
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Length 9.6mm
Shaft Diameter 2 mm
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C

More Information

25-Turn 500mW Sealed 10mm PV36W Series High resolution 25 turn Top adjustment screw
Sealed to protect against dust and liquid
Flame retardant 10mm square plastic housing
