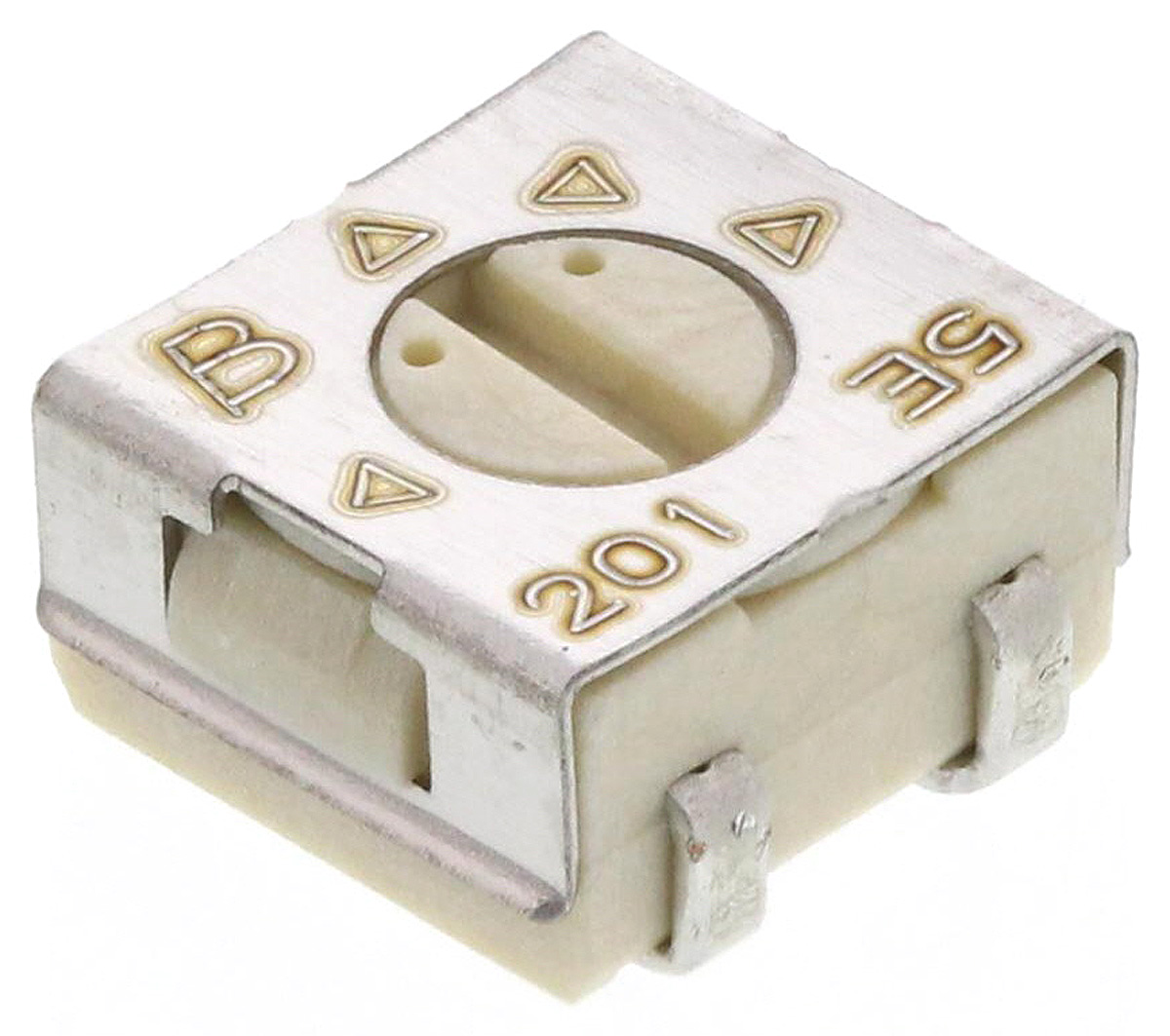

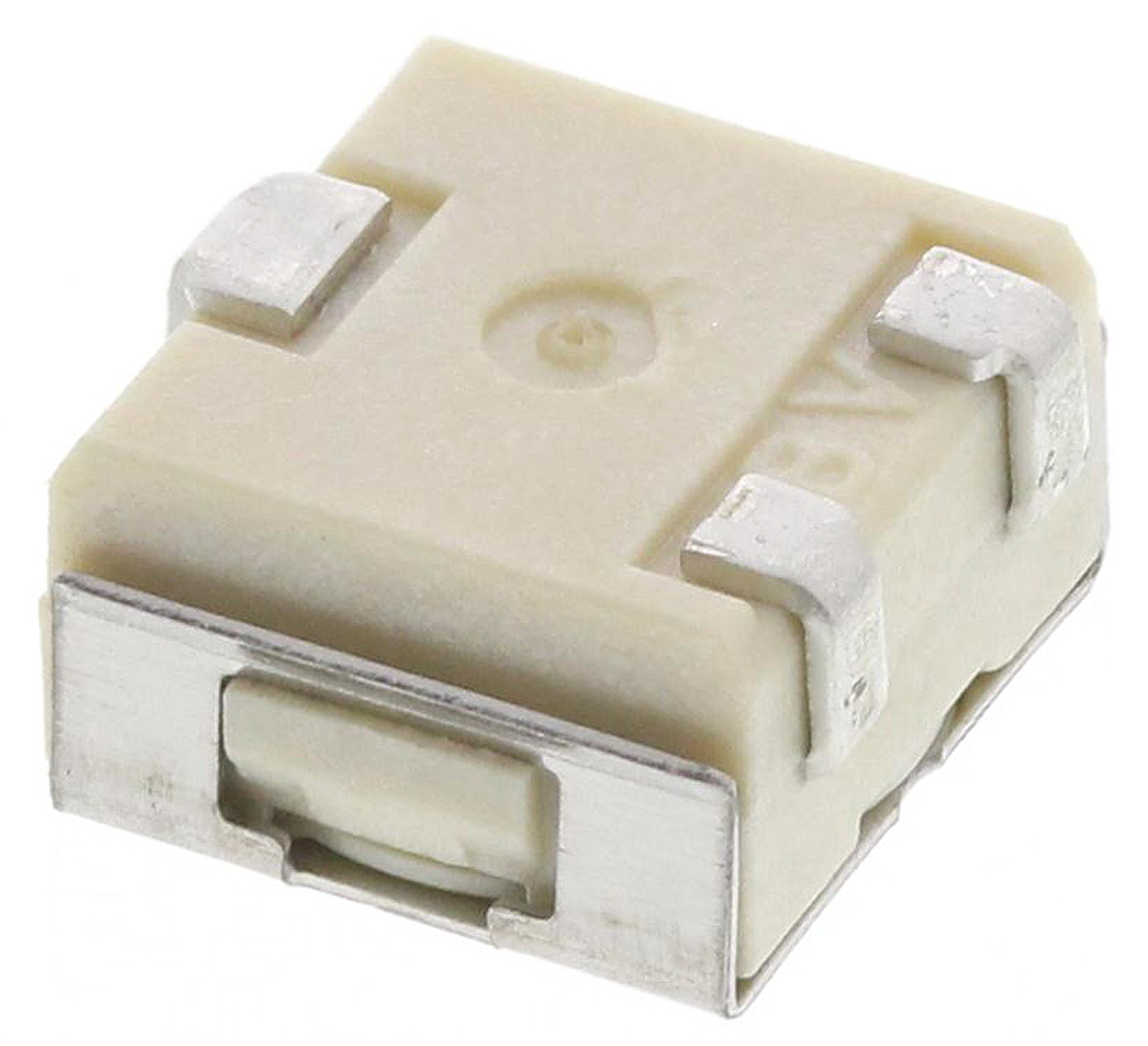

200Ω, SMD Trimmer Potentiometer 0.25W Top Adjust Bourns, 3314

3314j-1-201e 200Ω, SMD Trimmer Potentiometer 0.25W Top Adjust Bourns, 3314
3314J-1-201E
3314J-1-201E
HT17072
brand logo

HT Part No. HT17072

Mfr. Part No. 3314J-1-201E

Manufacturer: Bourns

Technical Documents: 3314 Series Surface Mount Trimming Potentiometer Data Sheet-096db1cf(datasheets)

760 - In Stock pcs
Price:
£ 1.22
Units Per Unit Price
5 - 49 £ 1.22
50 - 124 £ 0.91
125 + £ 0.85
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Resistance 200Ω
Mounting Type Surface Mount
Number of Turns 1
Orientation Top Adjust
Power Rating 0.25W
Series 3314
Termination Style J-Hook
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Length 4.5mm
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C

More Information

250mW 4mm Sealed 3314J Series - Straight Slot Bourns® 3314J Series 4mm Square Single Turn Cermet Trimming Potentiometer (Trimpot®) Miniature (nominal 4mm square case size)
Excellent mounting efficiency
Suitable for flow/reflow soldering or hand soldering
Ideal for automatic assembly
Straight slot top adjuster
Meets standard EIA and EIAJ footprint
