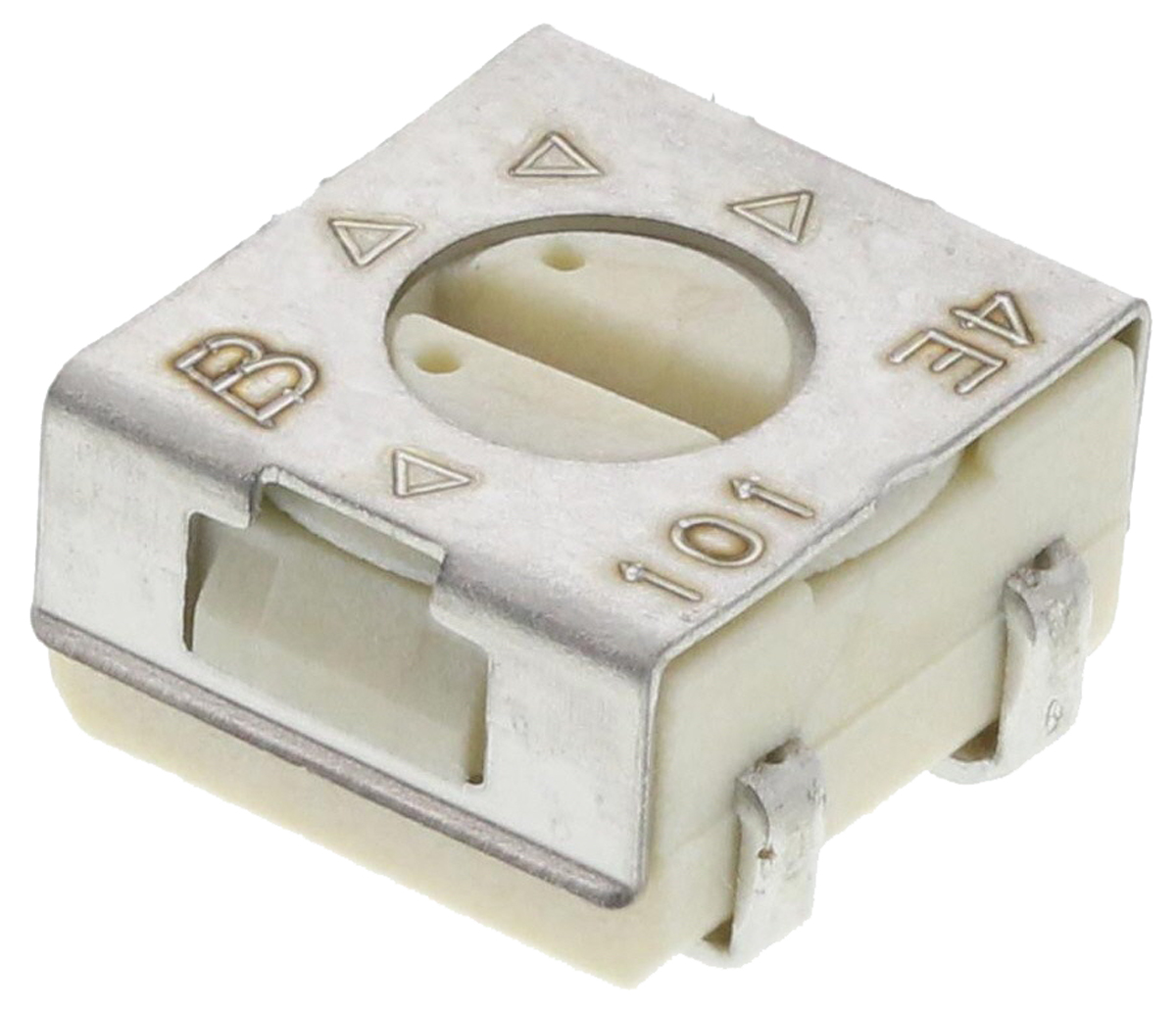

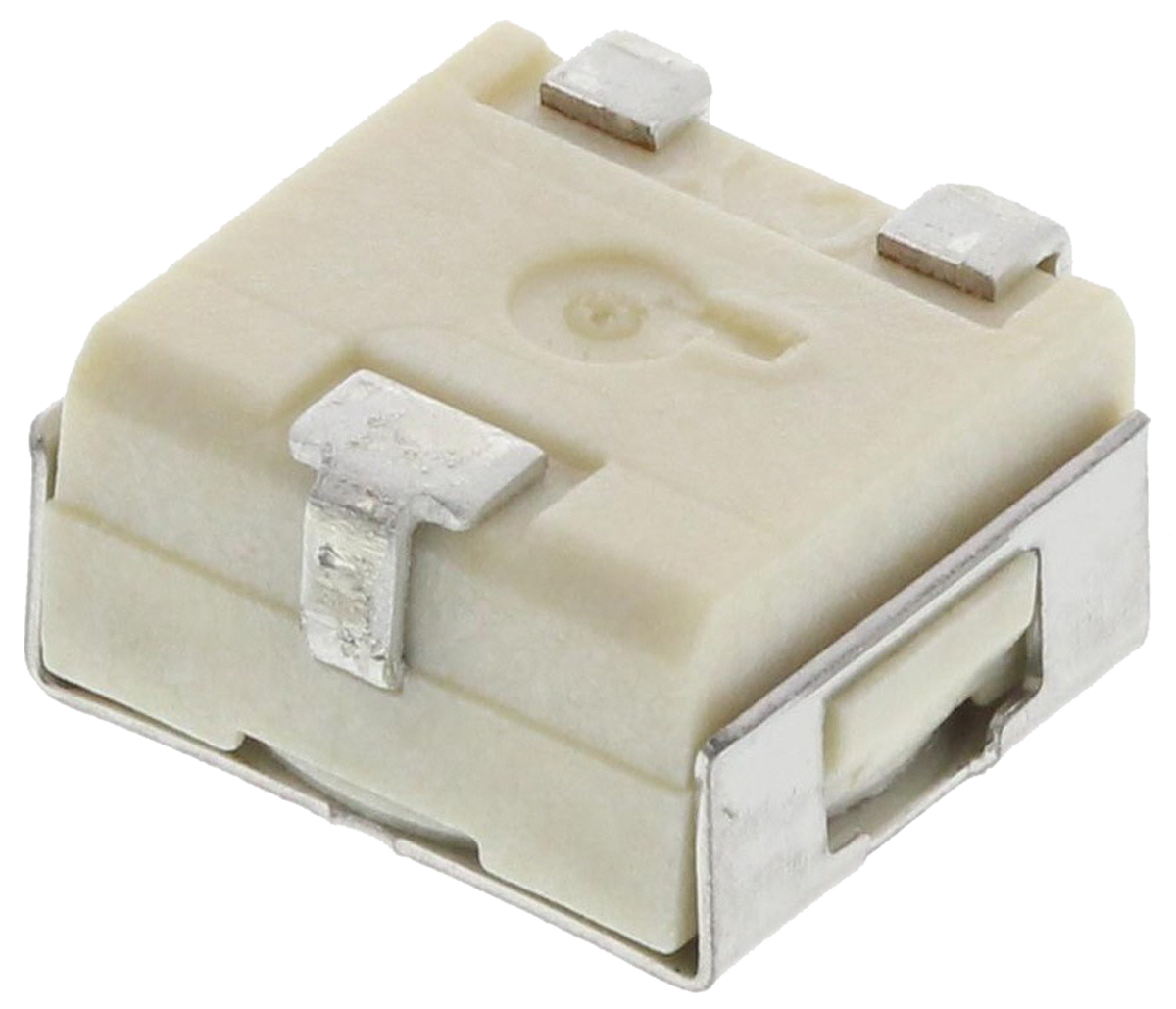

100Ω, SMD Trimmer Potentiometer 0.25W Top Adjust Bourns, 3314

3314j-1-101e 100Ω, SMD Trimmer Potentiometer 0.25W Top Adjust Bourns, 3314
3314J-1-101E
3314J-1-101E
HT17073
brand logo

HT Part No. HT17073

Mfr. Part No. 3314J-1-101E

Manufacturer: Bourns

Technical Documents: 3314 Series Surface Mount Trimming Potentiometer Data Sheet-096db1cf(datasheets)

1735 - In Stock pcs
Price:
£ 0.42
Units Per Unit Price
5 + £ 0.42
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Resistance 100Ω
Mounting Type Surface Mount
Number of Turns 1
Orientation Top Adjust
Power Rating 0.25W
Series 3314
Termination Style J-Hook
Tolerance ±20%
Temperature Coefficient ±100ppm/°C
Length 4.5mm
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C

More Information

250mW 4mm Sealed 3314J Series - Straight Slot Bourns® 3314J Series 4mm Square Single Turn Cermet Trimming Potentiometer (Trimpot®) Miniature (nominal 4mm square case size)
Excellent mounting efficiency
Suitable for flow/reflow soldering or hand soldering
Ideal for automatic assembly
Straight slot top adjuster
Meets standard EIA and EIAJ footprint
