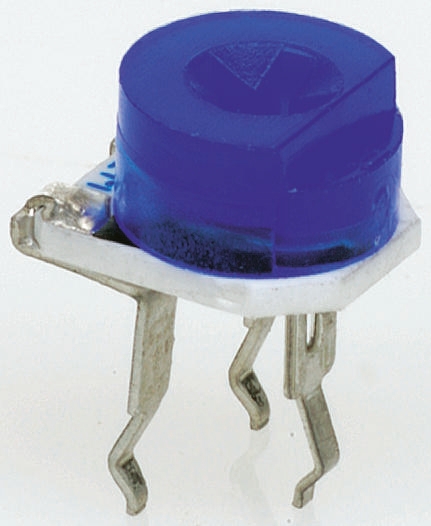

20kΩ, Through Hole Trimmer Potentiometer 0.2W Top Adjust Bourns, 3306

3306p-1-203 20kΩ, Through Hole Trimmer Potentiometer 0.2W Top Adjust Bourns, 3306
3306P-1-203
brand logo

HT Part No. HT21655

Mfr. Part No. 3306P-1-203

Manufacturer: Bourns

Technical Documents: 3306 - 6 mm Round Trimming Potentiometer Data Sheet-6424543e(datasheets)

10 - In Stock pcs
Price:
£ 0.26
Units Per Unit Price
10 - 99 £ 0.26
100 + £ 0.19
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Resistance 20kΩ
Mounting Type Through Hole
Number of Turns 1
Orientation Top Adjust
Power Rating 0.2W
Series 3306
Termination Style Pin
Tolerance ±25%
Temperature Coefficient ±250ppm/°C
Length 6.81mm
Minimum Operating Temperature -25°C
Maximum Operating Temperature +100°C
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=67615&DisplayLogo=False

More Information

Cermet 3306P Top Adjust Bourns® 3306F Series 6mm Round Trimpot® Trimming Potentiometer Cross slot adjustment
Horizontal mounting system
Dust / splash resistant covers
PC board stand-off's and retention feature
Lead-free terminals
