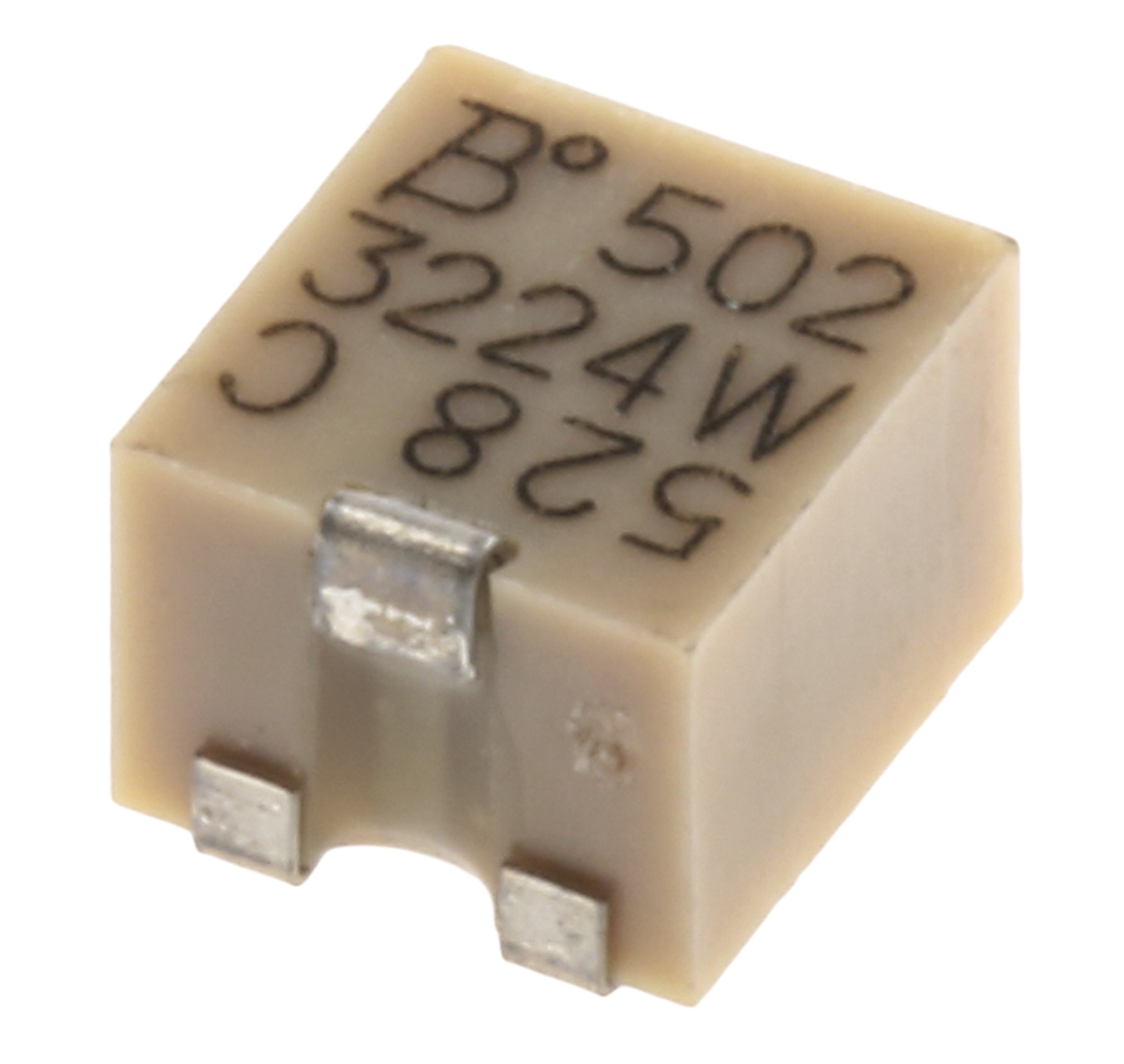

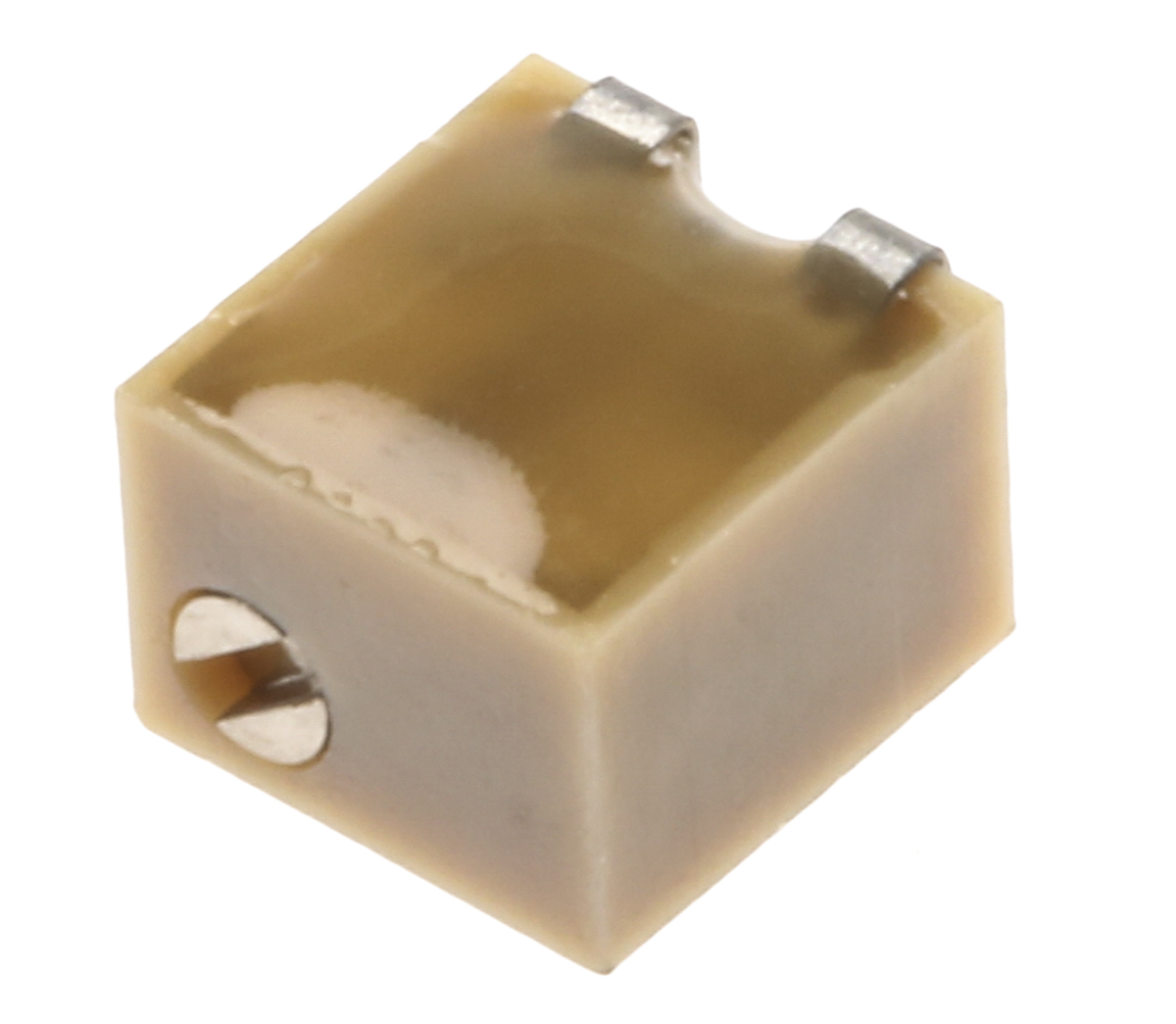

5kΩ, SMD Trimmer Potentiometer 0.25W Top Adjust Bourns, 3224

3224w-1-502e 5kΩ, SMD Trimmer Potentiometer 0.25W Top Adjust Bourns, 3224
3224W-1-502E
3224W-1-502E
HT25910
brand logo

HT Part No. HT25910

Mfr. Part No. 3224W-1-502E

Manufacturer: Bourns

Technical Documents: 3224 - 4mm SMD Surface Mount Trimming Potentiometer Data Sheet-3eb18bee(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Resistance 5kΩ
Mounting Type Surface Mount
Number of Turns 12
Orientation Top Adjust
Power Rating 0.25W
Series 3224
Termination Style J-Hook
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Length 4.8mm
Minimum Operating Temperature -65°C
Maximum Operating Temperature +150°C
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=177475&DisplayLogo=False

More Information

12-Turn 250mW 4mm 3224W Series Top Adjust Bourns Standard 3224W Series top adjust SMD Trimpot® trimming potentiometer with a power rating @ 70 °C of 0.25W. The 3224W series cermet trimmer features a flush adjustment screw, a pick and place centring design for automated placement compatibility and is Sealed to withstand standard board wash processing. Miniature (nominal 4mm square case size)
Excellent mounting efficiency
Suitable for flow/reflow soldering/hand solder
Meets standard EIA and EIAJ footprint
Low CRV - 1%
