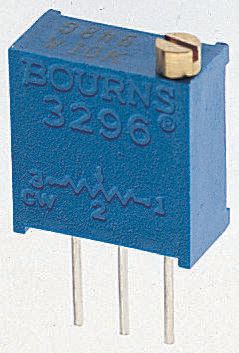

100Ω, Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns, 3296

3296w-1-101lf 100Ω, Through Hole Trimmer Potentiometer 0.5W Top Adjust Bourns, 3296
3296W-1-101LF
brand logo

HT Part No. HT26277

Mfr. Part No. 3296W-1-101LF

Manufacturer: Bourns

Technical Documents: 3296_Datasheet-ff8e250d(datasheets) Datasheet-d3d5f621(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Maximum Resistance 100Ω
Mounting Type Through Hole
Number of Turns 25
Orientation Top Adjust
Power Rating 0.5W
Series 3296
Termination Style Pin
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Length 9.53mm
Shaft Diameter 2.19 mm
Minimum Operating Temperature -55°C
Maximum Operating Temperature +125°C
3D Model https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=23942&DisplayLogo=False

More Information

Top Adjust 3296W Series Bourns 3296 series Square trimpot trimming potentiometer/ resistor perform a variety of circuit adjustments in all types of electronic equipment, These through hole trimmers feature a slim body profile, sealed to withstand immersion board washing. It also has a larger screw slot for easier adjustment. Moulded body with built-in stand offs Features Side or top adjustment with lead screw

Power rating 0.5W

25 turns and rotational life of 200 cycles

Temperature coefficient is ±100ppm/°C

Temperature Range -55 °C to +125 °C

5 terminal styles

Multiturn / Cermet / Industrial / Sealed

Chevron seal design Applications Consumer Electronics

Industrial

Portable Devices

Power Management
