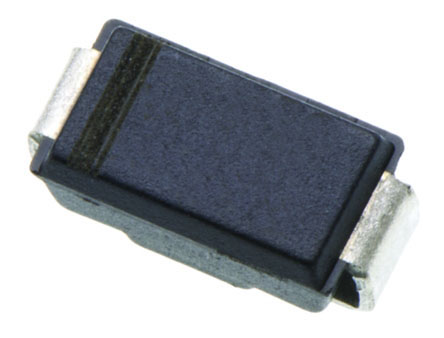

HT Part No. HT18816
Mfr. Part No. SMAJ5.0A
Manufacturer: Littelfuse
Technical Documents: Transient Voltage Suppression Diodes, Surface Mount, 400W, SMAJ series-fa3e2001(datasheets) SMAJ Series, Transient Voltage Suppression Diodes Surface Mount 400W-8046568b(datasheets) ESD Control Selection Guide V1-a1143865(datasheets)
| Product Attributes | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 9.2V |
| Minimum Breakdown Voltage | 6.4V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AC (SMA) |
| Maximum Reverse Stand-off Voltage | 5V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 400W |
| Maximum Peak Pulse Current | 43.5A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Dimensions | 4.5 x 2.79 x 2.084mm |
| Maximum Operating Temperature | +150 °C |
| Length | 4.5mm |
| Maximum Reverse Leakage Current | 800µA |
| Height | 2.087mm |
| Width | 2.79mm |
| Test Current | 10mA |
