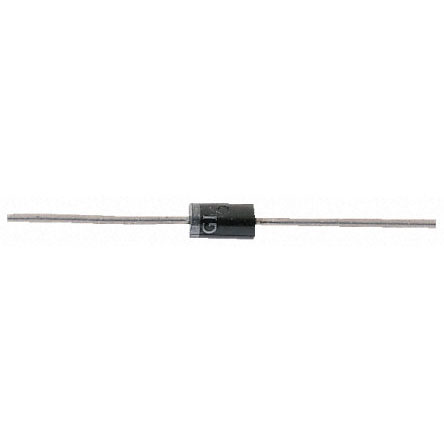

HT Part No. HT23454
Mfr. Part No. P6KE440A
Manufacturer: STMicroelectronics
Technical Documents: P6KE6V8A/440A P6KE6V8CA/440CA TRANSIL Data Sheet-56089afb(datasheets) ESD Control Selection Guide V1-a1143865(datasheets)
| Product Attributes | |
|---|---|
| Direction Type | Uni-Directional |
| Diode Configuration | Single |
| Maximum Clamping Voltage | 776V |
| Minimum Breakdown Voltage | 418V |
| Mounting Type | Through Hole |
| Package Type | DO-15 |
| Maximum Reverse Stand-off Voltage | 376V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 5.2A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +175 °C |
| Dimensions | 6.75 x 3.53 x 3.53mm |
| Width | 3.53mm |
| Length | 6.75mm |
| Test Current | 1mA |
| Maximum Reverse Leakage Current | 1µA |
| Height | 3.53mm |
