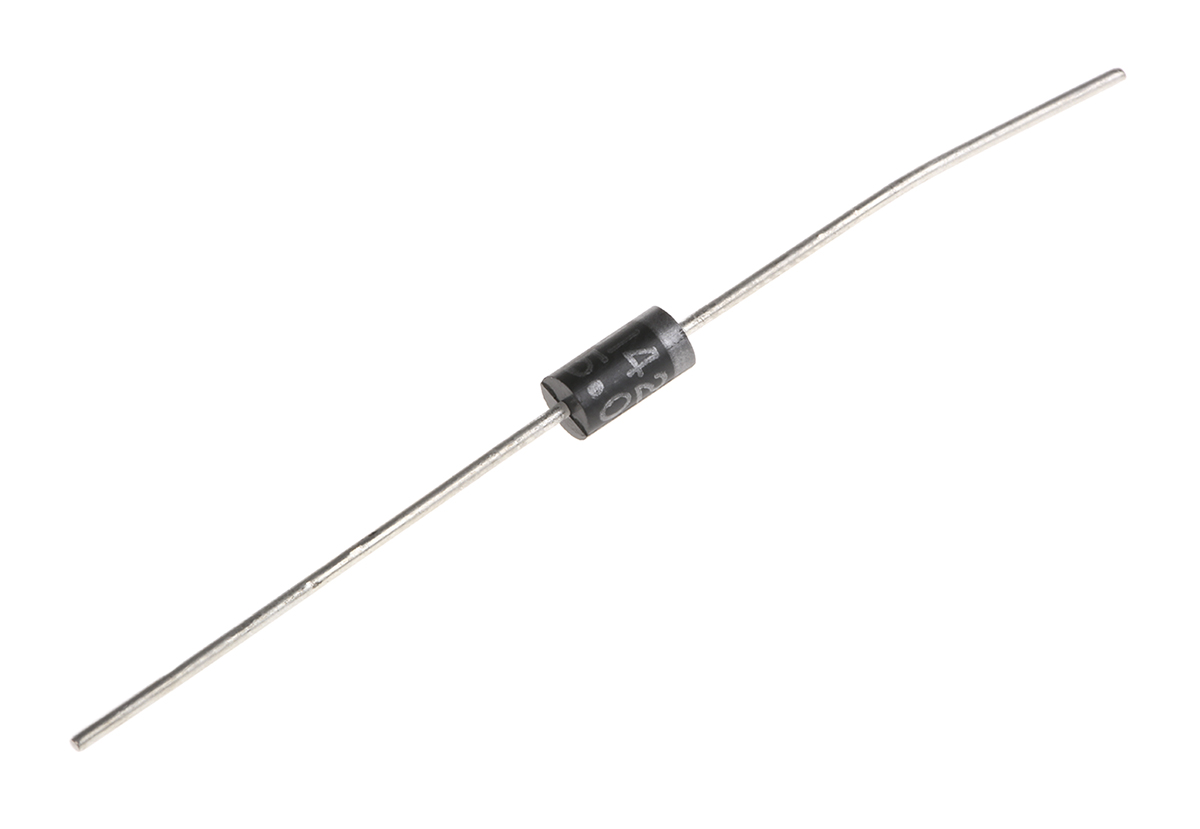

Littelfuse SA5.0A, Uni-Directional TVS Diode, 500W, 2-Pin DO-204AC

sa50a Littelfuse SA5.0A, Uni-Directional TVS Diode, 500W, 2-Pin DO-204AC
SA5.0A
brand logo

HT Part No. HT24627

Mfr. Part No. SA5.0A

Manufacturer: Littelfuse

Technical Documents: Datasheet-e5c3f236(datasheets) SA Series, Transient Voltage Suppression Diodes Axial Leaded 500W-ae14d045(datasheets) ESD Control Selection Guide V1-a1143865(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0.10
Units Per Unit Price
4000 + £ 0.10
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Diode Configuration Single
Direction Type Uni-Directional
Maximum Clamping Voltage 9.2V
Minimum Breakdown Voltage 6.4V
Mounting Type Through Hole
Package Type DO-204AC
Maximum Reverse Stand-off Voltage 5V
Pin Count 2
Peak Pulse Power Dissipation 500W
Maximum Peak Pulse Current 55.4A
Number of Elements per Chip 1
Minimum Operating Temperature -55 °C
Dimensions 3.6 x 7.6mm
Maximum Operating Temperature +175 °C
Length 7.6mm
Maximum Reverse Leakage Current 600µA
Diameter 3.6mm
Test Current 10mA

More Information

TVS Diode Axial 500W SA Series The SA series of TVS diodes from Littelfuse are designed for use in telecom, industrial and consumer electronic applications.
The SA series of diode specifically protect sensitive electronic equipment from voltage transients induced from lightning and other transient voltage events. Features:
Halogen Free
RoHS Compliant
Excellent Clamping Capability
Low Incremental Surge Resistance
Bidirectional or Unidirectional Versions Available
