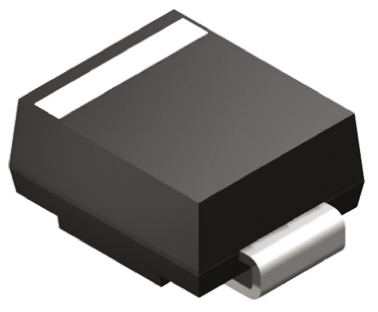

HT Part No. HT25109
Mfr. Part No. SMBJ33A
Manufacturer: Taiwan Semiconductor
Technical Documents: SMBJ5V0(C)A - SMBJ170(C)A, 600 Watt Transient Voltage Suppressors Data Sheet-3f89f7dc(datasheets) ESD Control Selection Guide V1-a1143865(datasheets)
| Product Attributes | |
|---|---|
| Diode Configuration | Single |
| Direction Type | Uni-Directional |
| Maximum Clamping Voltage | 53.3V |
| Minimum Breakdown Voltage | 36.7V |
| Mounting Type | Surface Mount |
| Package Type | DO-214AA (SMB) |
| Maximum Reverse Stand-off Voltage | 33V |
| Pin Count | 2 |
| Peak Pulse Power Dissipation | 600W |
| Maximum Peak Pulse Current | 11.3A |
| Number of Elements per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Dimensions | 4.57 x 3.94 x 2.237mm |
| Test Current | 1mA |
| Length | 4.57mm |
| Height | 2.237mm |
| Width | 3.94mm |
| Maximum Reverse Leakage Current | 1µA |
