PULS Dimension UPS

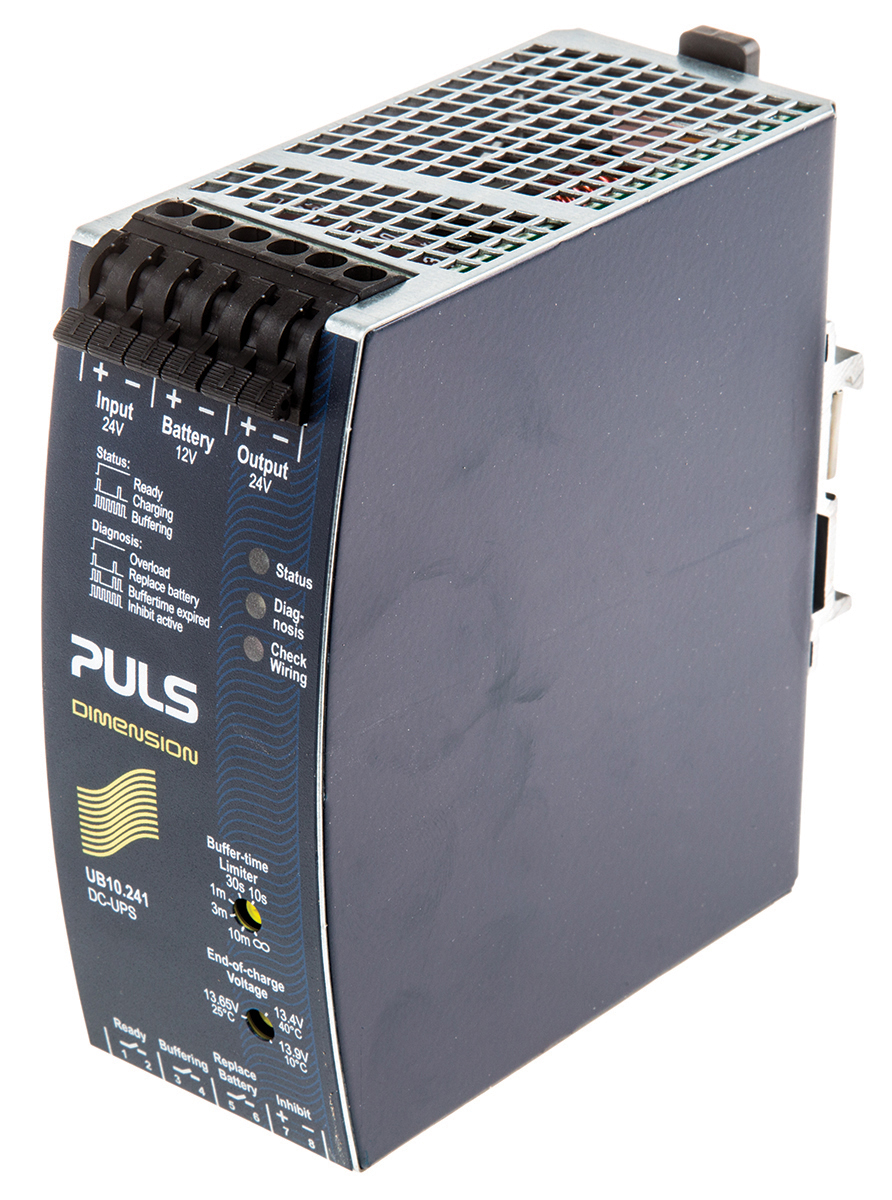

The PULS uninterruptible power supply (UPS) controller UB10.241 is an addition to standard 24V power supplies to bridge power failures or voltage fluctuations. This device avoids expensive downtimes, long restart cycles, and loss of data. The DC-UPS includes a professional battery management system that charges and monitors the battery to achieve the longest battery service life, as well as, many diagnostic functions that ensure the reliable operation of the entire system. A unique feature of the UB10.241 is it requires only one 12V battery to buffer the 24V output. This makes matching batteries unnecessary and allows precise battery charging and testing. The UB10.241 comes with two preassembled battery modules for the external 12V battery, a lightweight 7Ah battery that can be mounted on the DIN-Rail, and a 26Ah module that can be panel mounted for longer buffer times.
Features and Benefits
50% power reserves
Comprehensive diagnostic and monitoring functions
Current rating is 10A
Electronically overload and short circuit protected
Input voltage is 22.5VDC to 30VDC
Output voltage is 22.4VDC
Power rating is 240W
Replace battery signal included
Selectable buffer time limiter
Stable output voltage in buffer mode
Superior battery management for longest battery life
Applications
Communication
Industrial control
Instrumentation equipment
Office
Certifications
IEC 60950-1 standards
UL 508 standards
UL 60950-1 standards
