Metal Oxide Varistors Standard Series

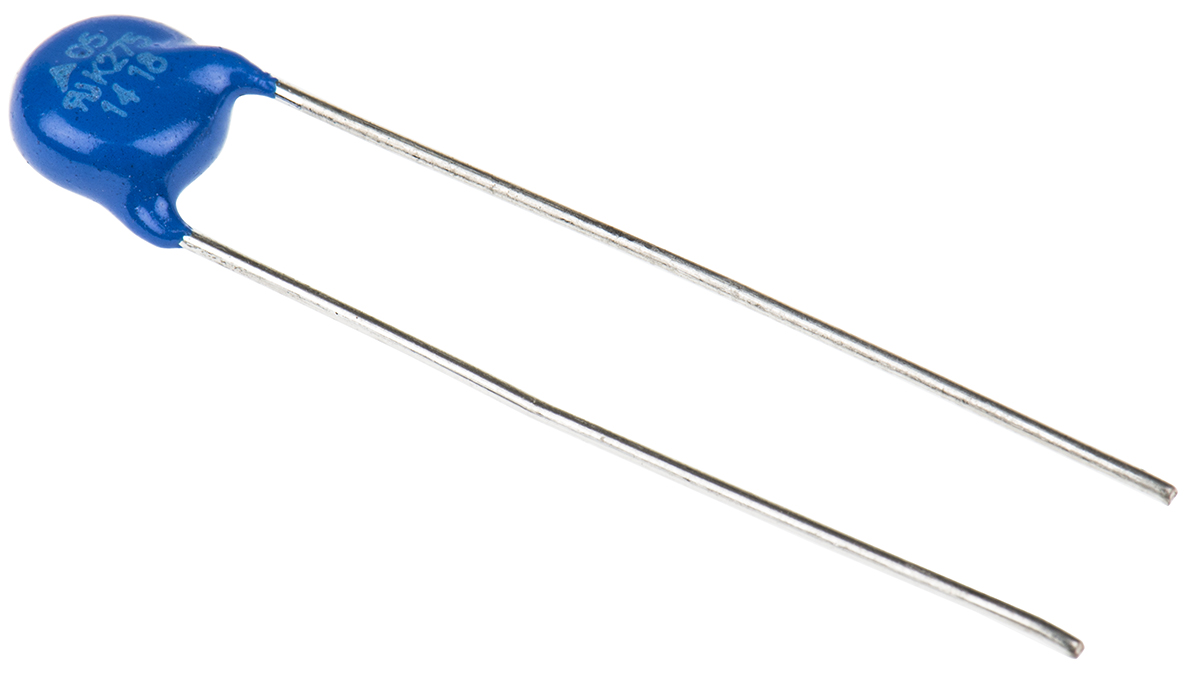

Standard radial epoxy-coated MOV with tinned-copper leads.
Tinned copper wire leads with a ceramic body coated with epoxy resin
Rated for surge current (8//20 μs) and for energy (2ms)
HT Part No. HT15719
Mfr. Part No. B72205S0271K101
Manufacturer: EPCOS
Technical Documents: Datasheet-663c72e9(datasheets)
| Product Attributes | |
|---|---|
| Varistor Voltage | 430V |
| Maximum AC Voltage Rating | 275V |
| Maximum DC Voltage Rating | 350V |
| Clamping Voltage | 710V |
| Clamping Current | 5A |
| Energy | 8.6J |
| Material | Metal |
| Series | Standard |
| Diameter | 7mm |
| Maximum Surge Current | 400A |
| Capacitance | 60pF |
| Thickness | 4.3mm |
| Dimensions | 7 (Dia.) x 4.3mm |
| Lead Pitch | 5mm |
