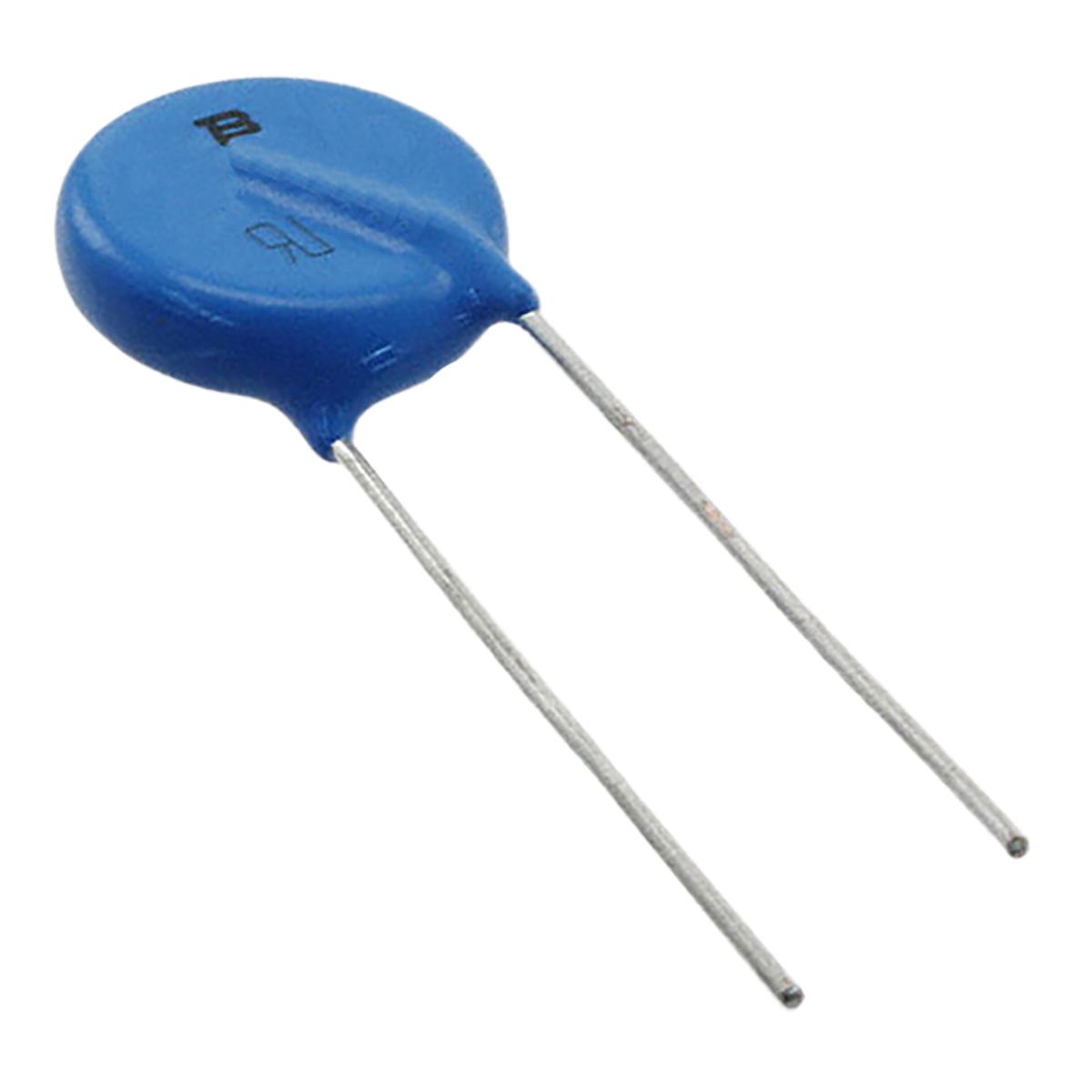

Bourns, MOV-14D Metal Oxide Varistor 460pF 50A, Clamping 710V, Varistor 430V

mov-14d431k Bourns, MOV-14D Metal Oxide Varistor 460pF 50A, Clamping 710V, Varistor 430V
MOV-14D431K
brand logo

HT Part No. HT16058

Mfr. Part No. MOV-14D431K

Manufacturer: Bourns

Technical Documents: Datasheet-2977d2f1(datasheets)

1200 - In Stock pcs
Price:
£ 0.099
Units Per Unit Price
600 + £ 0.099
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Varistor Voltage 430V
Maximum AC Voltage Rating 275V
Maximum DC Voltage Rating 350V
Clamping Voltage 710V
Clamping Current 50A
Energy 115J
Material Metal
Series MOV-14D
Diameter 16.5mm
Maximum Surge Current 4500A
Capacitance 460pF
Length 40mm
Thickness 5.2mm
Dimensions 16.5 (Dia.) x 5.2mm
Lead Pitch 7.5mm

More Information

Metal Oxide Varistors - Bourns - MOV Series The Bourns MOV-14D Series of 14 mm radial leaded varistor devices protects against over voltage transients such as lightning, power contact and power induction.

The devices have a high current handling, high energy absorption capability and fast response times to protect against transient faults up to rated limits and will provide excellent reliability. High voltage rating
Fast response time
Bidirectional
Surge protection
