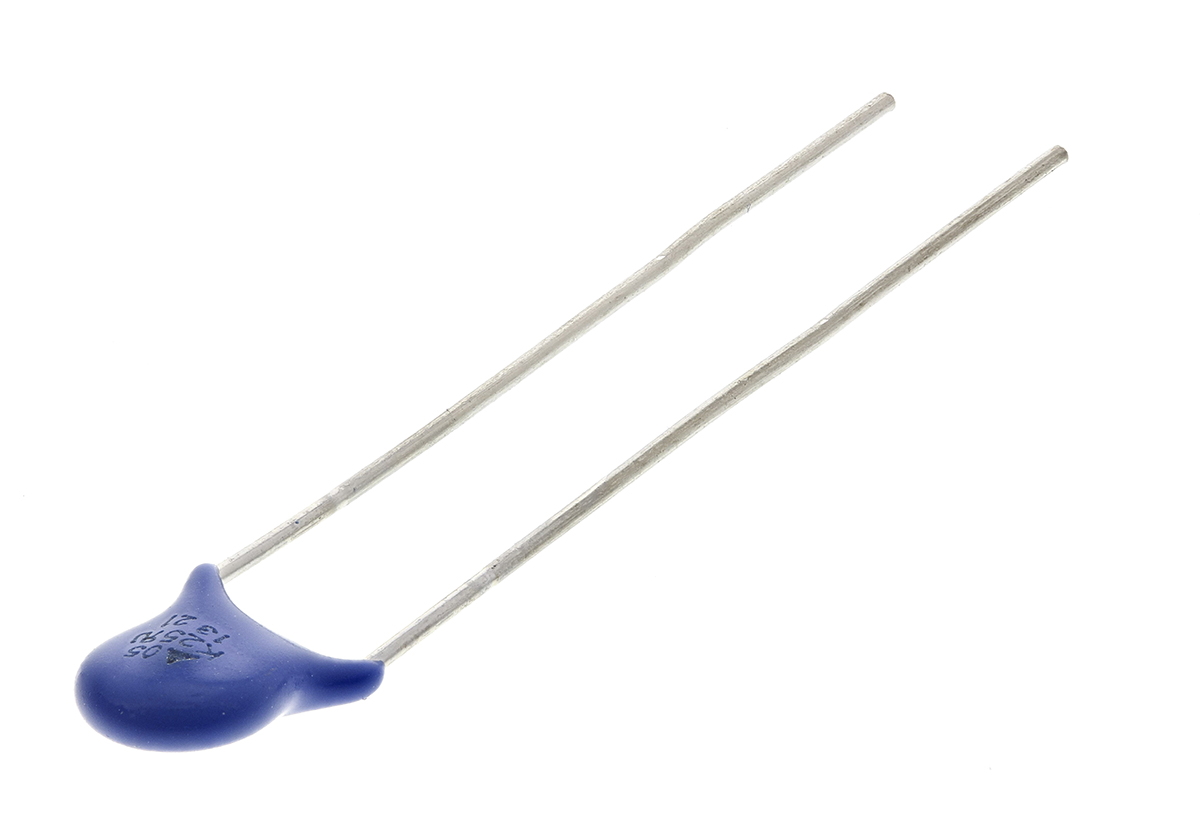

Metal Oxide Varistors Standard Series
Standard radial epoxy-coated MOV with tinned-copper leads.
Tinned copper wire leads with a ceramic body coated with epoxy resin
Rated for surge current (8//20 μs) and for energy (2ms)
HT Part No. HT24859
Mfr. Part No. B72205S0250K101
Manufacturer: EPCOS
Technical Documents: Datasheet-9703ccac(datasheets)
| Product Attributes | |
|---|---|
| Varistor Voltage | 39V |
| Maximum AC Voltage Rating | 25V |
| Maximum DC Voltage Rating | 31V |
| Clamping Voltage | 77V |
| Clamping Current | 1A |
| Material | Metal |
| Energy | 0.7J |
| Series | Standard |
| Diameter | 7mm |
| Maximum Surge Current | 100A |
| Capacitance | 850pF |
| Thickness | 3.6mm |
| Dimensions | 7 (Dia.) x 3.6mm |
| Lead Pitch | 5mm |
