Littelfuse, ML Varistor 500pF 1A, Clamping 75V, Varistor 38 → 49V, 1206 (3216M)

v33mla1206nh Littelfuse, ML Varistor 500pF 1A, Clamping 75V, Varistor 38 → 49V, 1206 (3216M)
V33MLA1206NH
brand logo

HT Part No. HT27180

Mfr. Part No. V33MLA1206NH

Manufacturer: Littelfuse

Technical Documents: MLA Varistor Series Data Sheet-67bcc471(datasheets)

Pre-order available (0 In Stock) pcs
Price:
£ 0
Units Per Unit Price
  • secure-payment
  • visa
  • american-express
  • master-card
  • opayo

Product Specification

Product Attributes
Varistor Voltage 38 → 49V
Maximum AC Voltage Rating 26V
Maximum DC Voltage Rating 33V
Clamping Voltage 75V
Clamping Current 1A
Energy 0.8J
Material Metal
Series ML
Maximum Surge Current 180A
Capacitance 500pF
Length 3.2mm
Depth 1.6mm
Thickness 1.8mm
Package/Case 1206 (3216M)
Dimensions 3.2 x 1.6 x 1.8mm

More Information

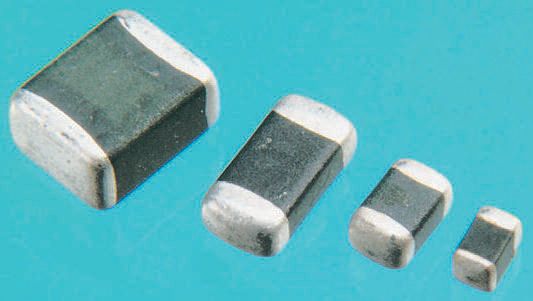

SMT Transient Suppressors - ML Series Multilayer semi-conducting ceramic construction providing bi-directional voltage clamping. Suppression of inductive switching or other fast electrical transient events makes these devices useful in helping to achieve electromagnetic compliance of end products Suitable for on-board transient voltage protection of ICs and transistors
Can replace larger surface mount TVS zeners in many applications
