Metal Oxide Varistors Standard Series

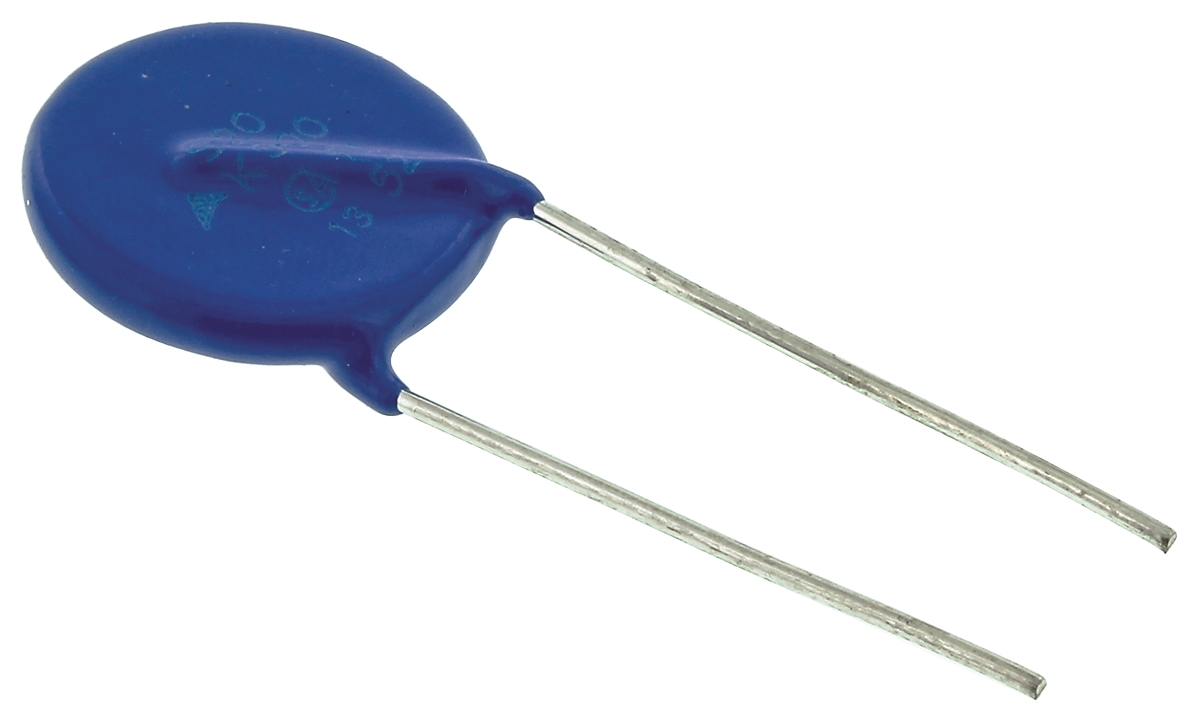

Standard radial epoxy-coated MOV with tinned-copper leads.
Tinned copper wire leads with a ceramic body coated with epoxy resin
Rated for surge current (8//20 μs) and for energy (2ms)
HT Part No. HT29104
Mfr. Part No. B72220S0301K101
Manufacturer: EPCOS
Technical Documents: Datasheet-347b3399(datasheets)
| Product Attributes | |
|---|---|
| Varistor Voltage | 470V |
| Maximum AC Voltage Rating | 300V |
| Maximum DC Voltage Rating | 385V |
| Clamping Voltage | 775V |
| Clamping Current | 100A |
| Energy | 173J |
| Material | Metal |
| Series | Standard |
| Diameter | 21.5mm |
| Maximum Surge Current | 8000A |
| Capacitance | 580pF |
| Thickness | 5.6mm |
| Dimensions | 21.5 (Dia.) x 5.6mm |
| Lead Pitch | 10mm |
