Metal Oxide Varistors Standard Series

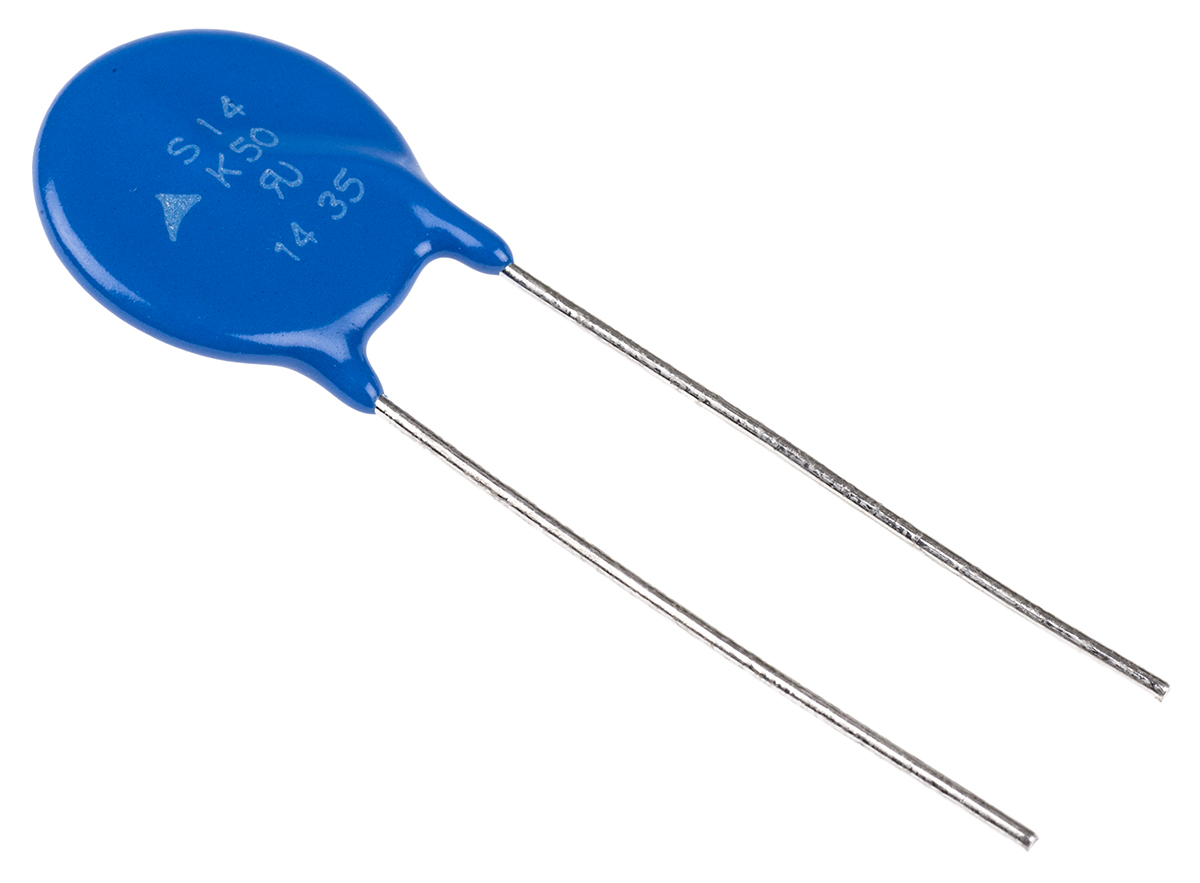

Standard radial epoxy-coated MOV with tinned-copper leads.
Tinned copper wire leads with a ceramic body coated with epoxy resin
Rated for surge current (8//20 μs) and for energy (2ms)
HT Part No. HT29422
Mfr. Part No. B72214S0500K101
Manufacturer: EPCOS
Technical Documents: Datasheet-79a4d2e5(datasheets)
| Product Attributes | |
|---|---|
| Varistor Voltage | 82V |
| Maximum AC Voltage Rating | 50V |
| Maximum DC Voltage Rating | 65V |
| Clamping Voltage | 135V |
| Clamping Current | 50A |
| Material | Metal |
| Energy | 15J |
| Series | Standard |
| Diameter | 15.5mm |
| Maximum Surge Current | 4500A |
| Capacitance | 1.8nF |
| Thickness | 3.9mm |
| Dimensions | 15.5 (Dia.) x 3.9mm |
| Lead Pitch | 7.5mm |
